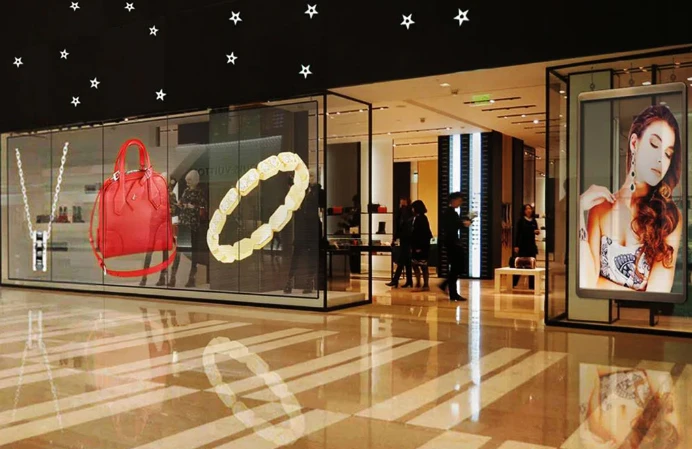

Budget aiin weight hian project a that tam zawk.
Transparent screens te hian a rit hle3-12 kg/m2 vel a nileh tlan kual vel bawk10mm a thuk a ni. Traditional screens leh cabinet te chu a rit zawng a ni30-50 kg/m2 vel a nileh teh rawh50-150mm a thuk a ni. Heritage building original window nei chuan heritage listing tichhe thei tur steel reinforcement tel lo chuan traditional LED weight a support thei lo fo thin. Transparent screen te hi interior glass surface-ah direct-in an dah a, structural work a nei lo. Installation hian thla tam tak aiin ni tam tak a mamawh zawk.
Glass storefront 500 nei retail chain chuan building structure khawih lovin network pumpuiah screen langtlang tak tak a roll out a ni. Traditional screen-a chutiang bawka tih tum chuan hmun tinah custom structural engineering a mamawh ang-project tam zawk chu budget pawmpuina hnuhnung ber an thlen hmain a that thei project scope a ni.
Kan tehkhin Tak Tak Chu
Kum sawm tam tak chhung chu hmun tinah -stadium scoreboard, retail signage-ah LED screen hlui chu a awm vek a. An thawk tha hle: rawng eng tak, dik tak, rintlak tak tak. Mahse, tumahin engineer theih loh tradeoff nen an rawn kal a: screen tin hi a bul berah chuan wall a ni. Light block, view block, hmun a luah.
Transparent LED chuan chu equation chu a flip ta a ni. Product category hrang hrang a awm vek.
Tuna hmasawnna tam zawk hi retail application hi a ni. Dawr window hi prime real estate a ni fo tawh. Products entir leh promotion te chu a ruala kalpui i duh a ni. Traditional LED hian duhthlanna-screen emaw window emaw a force thin. Transparent LED hian chu duhthlanna chu a paih vek a ni. Customer te hian promotional content leh merchandise te chu a rualin an hmu thin. Nike leh Zara flagship location te chuan hei hi an lo hrechhuak hmasa ber a ni. He single use case hian kum nga chhunga transparent LED chu niche curiosity atanga serious commercial consideration lama a kal chhan a sawifiah a ni.
An Insiam Dan
Traditional screen-ah hian thil pakhat a dah pawimawh ber a, chu chu hmun khata pixel tam thei ang ber cramming a ni. LED chips-a awm leh awm lohSMD (Surface Mount Device) hmanga siam a ni., COB (Chip on Board) a ni., emaw, a aia upa zawk emawDIP (Dual In-line Package) hmanga siam a ni.format-PCB substrate-ah nghet takin packed rawh. Black mask emaw epoxy coating emaw hian engkim a khuh vek a, chu chuan ambient light a soak up a, contrast a ti sang bawk.
A result hian a sawi chhuak a ni. COB panels hian a chunga contrast ratio te hi a hit a20,000:1. Pixel pitch te chu a kal tha angP0.6mm a ni4K leh 8K display atan. Pawn lam unit te chuan an nawr thin10,000 nits a ni.
Mahse traditional LED screen hian light kal tlang 100% in a block thin. Digital wall an ni. Impact atan a tha hle a, i hmuh theihna tur hmun engkim tan pawh a hlauhawm hle.

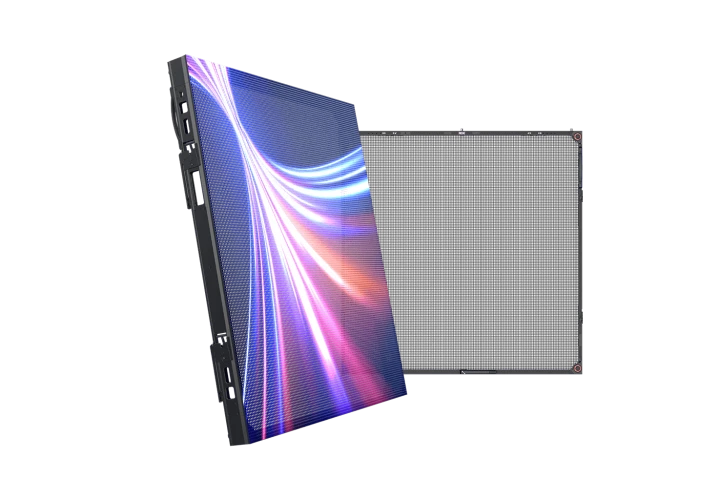

Transparent screens chu a tawp lam atanga tan a ni. Pixel count tihpun ai chuan image quality pawm theiha awm reng chungin light luh tir tumna lam hawia siam an ni. Thil tih dan tlangpui pathum a awm.Strip-a innghat design teLED chip te chu aluminum emaw PCB strip te tak te, an inkar gap neiah dah la-light chu gap atang chuan a kal tlang a, spacing a zirin 60-90% transparency a hit thin.Film-a innghat version hrang hrangmicro-LEDs chu ultra-thin transparent substrate (4mm vel a thuk, 3-6 kg/m2 rit)-ah embed a, chu chu glass awm tawhah direct-in a innghat a ni.Glass-a inzawmkhawm design teLED elements te chu dual glass layer inkar ah sandwich la, architectural glass chu display surface ah a chantir.
Strip inkara gap tam zawk awm chuan light tam zawk a lut tihna a ni a, mahse square meter khatah pixels tlem zawk a awm thung. Transparent screen zawng zawng hi heng thil pahnih inkara inremna a ni.

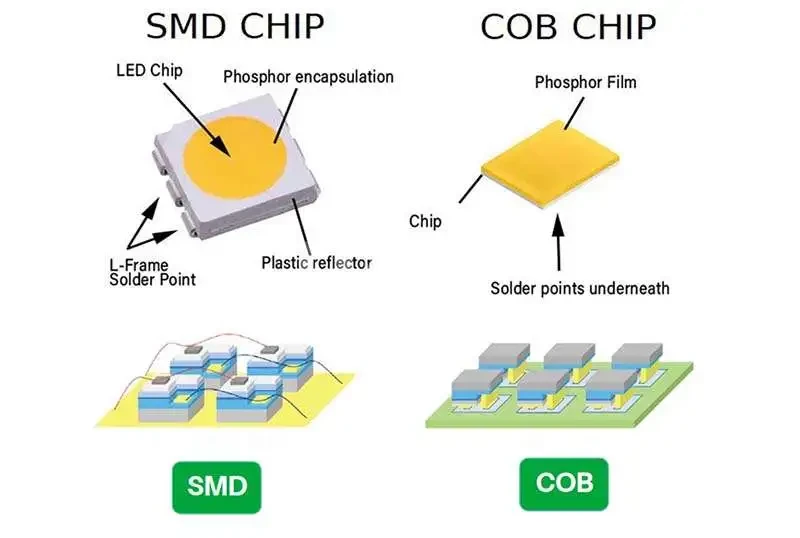

LED Packaging chi hrang hrang
SMD-Surface-a dahna hmanrua's hi kum sawm tam tak chhung a lo awm tawh a ni. Plastic housing tenau takah chip pakhat zel, PCB-a solder-a dah. Technology hi a straightforward a, chu chu a advantage dik tak a ni. Supply chain te hi a puitling tawh a, technician te chuan an hnathawh dan an hre tawh a, LED pakhat a thih chuan module pumpui thlak lovin a inthlak chhuak thei a ni. Hei hi LED technology finfiah leh rintlak ber a ni: cutting-edge lo, consistently functional, cost{5}}effective to maintain. Contrast chu a thu a1,200-1,800:1. Unit tam zawk hi chu a rei berdarkar 50,000 a nibrightness a tlahniam langsar hle. P1.2 emaw a aia coarser emaw thil eng pawh tan chuan SMD hi default choice a la ni reng a, chhan tha tak a awm.
COBthil ngaihnawm-leh man to tak takna hmun a ni. Chip on Board hian plastic housing hrang hrangte chu a skip vek a ni. LED chip tam tak chu substrate-ah direct-in an dah a, chutah chuan resin layer pakhatin an khuh a ni. Engineering chuan chuta tang chuan cascade-in hlawkna a hmu a: heat dissipate roughly 3x better (no plastic housings trapping warmth), contrast jumps past20,000:1(chu chuan unified surface chuan ambient light chu a absorb tha zawk a), lifespan chu chu aia nasa zawk a nidarkar 100,000 a ni. P1.0 hnuai lam ultra-fine pitch tan chuan option awmchhun a ni. The tradeoff: thil pakhat a chhiat chuan module pumpui chu thlak a ngai a niThil thleng pakhatah $200-300 vel a ni. Tin, upfront cost pawh a sang zawk hle bawk. He technology hi broadcast studio leh high{2}}end corporate environment-ah a inmil hle. Hotel lobby atana investment tam lutuk a entir a ni.

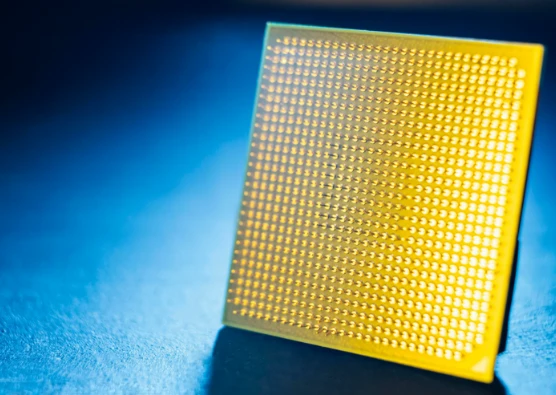

Tichuan a awm leh taGOB-SMD chu venhimna coating hmanga siam a ni. Glue chu Board ah a awm. Same underlying tech, mahse LED surface khuh tur optical glue layer hmanga siam a ni. Hei hian physical contact leh humidity lakah durability tha zawk a pe a, chutih rualin SMD repair economics chu a vawng reng bawk. Integrator thenkhat chuan traffic tamna-retail environment atan nasa takin an rawt a ni. Mi dangte chuan dilna tam zawkah chuan a tul lo niin an ngai. Results hi use case bik a zirin a inang lo.
Transparent screen tam zawk hian modified strip-based SMD mounting emaw specialized transparent substrate emaw an hmang thin. Premium model thenkhatah chuan COB-transparent hybrid approach an hmang thin.
Specs Pawimawh Tak Tak (Leh A Pawi Lo Tak Te) .
Spec zawng zawng hi ngaihven inang vek an phu lo.
Transparency a ni
Transparency hi a ni50% atanga 95% thleng a ni.configuration a zirin transparent screen-ah te. Traditional sits at 0%-chu chu an hnathawh danah chuan a bulpui ber a ni. Pixel pitch coarser tih awmzia chu LED strip inkarah gap tam zawk a awm a, light tam zawk a kal tlang tihna a ni. P9.26 ah nawr la, 80% transparency i pel ang, mahse chutih hunah chuan kawngpui sir atanga hmuh theih building facade lian tak tak-scale viewing-building facades atan chauh i tling tawh ang.
Thutlukna
Resolution hi traditional LED-in hnehna a channa chiang tak a ni. COB chu a kal tha angP0.4. Standard SMD traditional screens hnuai lam atanga chhuakP1.0-P1.2. Transparent screens tunah hian max out vel a niP2.6. AV integrator tam zawk chuan chhut dan rang tak an hmang a: pixel pitch (mm-a siam) chu 0.3-in then la, meter-a en theihna hmun nuam ber chu hmuh theih a ni. Chuvangin P3.9 transparent screen hian pixelation a bo hmain metre 13 vel a mamawh a ni. P1.2 traditional screen chu metre 4 chauh a hla atang chuan a sharp hmel hle.
Eng mawi tak a ni
Indoor hmanna atan chuan transparent LED hian a output tlangpui800-2,500 nit vel a ni. Traditional indoor screen a kal thin600-1,500 nits vel a ni-so transparent hian setup tam takah edge a nei tak tak a ni. Storefront-ah hian punch tam zawk a ngai a: transparent screen-ah a kal tlangpui4,000-5,500 nits vel a ni. Direct sunlight hi traditional la dominatena hmun a ni{1}}an nawr thin5,000-10,000 nits vel a niglass hnung lama transparent screen-te erawh chuan nits 6,000 hnuaiah an struggle thung.
Contrast leh Color te
Hetah hian contrast leh color-traditional LED hian a thunun a, hei hi a danglam dawn lo. Black mask design hian ambient light a absorb a, black thuk zawk a siam chhuak thin. COB technology hian a chungah hian lab-measured contrast ratios a post a20,000:1. Traditional screen-ah chuan dum a lang a, transparent screen-ah chuan an hnung lama awm eng pawh a lang. Conference room, lirthei dahna hmun, ni eng. Engineering engzat pawhin hei hi a siam tha lo-eng chhuah tir hi a pianphung a ni.

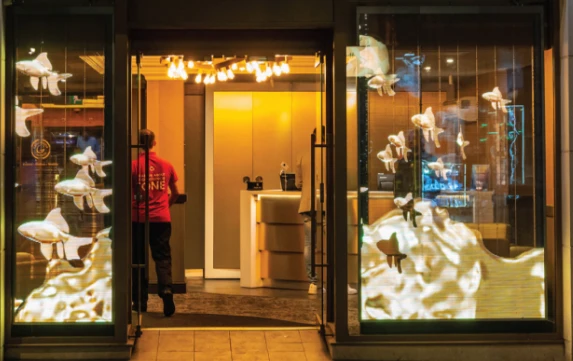

Eng Nge I Pe Tak Tak Ang
Hengte hi FOB Shenzhen man-landed cost a ni a, North America emaw Europe emaw ah chuan a tlangpuiin 15-25% a belhchhah thin. Hman man a inthlak danglam a; LED chip man hi Q1 leh Q3 2024. inkar khan 12% velin a tlahniam a ni.
LED langtlang tak a ni
Entry-level side-emitting panels te chu a kal zel a$580-950/m². Mid-range front-emitting-commercial installation tam zawk tlakna hmun-thutnaah$1,100-2,400/m². Transparent film LED chuan a ti a$1,150-2,800/m². Holographic transparent hmangin a rawn lang chhuak a$1,400-3,200/m².
Traditional LED hmanga siam a ni
Outdoor SMD (P4-P10) hi a man tlawm ber a ni$150-400/m². Indoor SMD (P1.5-P3) a kal thei$300-800/m². Fine-pitch COB (P0.9-P1.2) chuan a hit a$1,000-2,500/m². Ultra-fine COB (P0.6 leh a hnuai lam) chu a intan thin$3,000+/m².
Installation a nitransparent LED tan chuan a tlangpuiin $200-500/m2-straightforward-in glass awm tawha dahin a kal thin. Traditional LED installation hi structural requirements i factor hnuah $500-2,000/m2 a ni. Hei hi a tir lama kan sawi tawh weight differential chu budget-a a lan chhuahna hmun a ni.
Kum khat chhunga energy sensonitin darkar 12 chhunga 100m2-a zau installation-ah: transparent atan $3,000-4,500 vel, traditional tan $5,000-7,500 vel. Transparent screen hian square meter khatah 30-40% in power tlem zawk LED chip a pull a, active ventilation ai chuan passive cooling a ni.
Content siam dan turmiten an theihnghilh variable dang a belh leh bawk. Transparent display-ah hian transparent background-black area-te chu transparent anga lantir thei tur content design a ngai a ni.
Installation leh Maintenance Reality a ni
Transparent LED screen te hi adhesive, magnetic system emaw mechanical clip hmangin glass surface-ah direct-in an dah a ni. A tam zawkah chuan steel structure a awm lo. Hun kal tawh: ni atanga kar hrang hrang.
Traditional LED screen-ah hian dedicated support structures, weight loading calculation, pawn lam tan thli load analysis, building permit neih fo a ngai a ni. Hun bituk: kar atanga thla hrang hrang.
Maintenance pawh a danglamin hna a thawk bawk. Transparent screen-ah hian modular strip/panel thlak danglamna hman a ni. Components te hi single-technician service atan a light tawk. Traditional SMD screen-ah hian LED pakhat zel thlak theih ni mahse technician thiam tak tak, precision soldering-$10-15 per incident an mamawh a ni. Traditional COB screen-ah chuan repair incident khatah $200-300+-in module-level replacement a ngai a, mahse a chhiat hi a tam lo hle.
Khawiah nge an awm
Project thenkhat chu camp khatah an tla tih a chiang hle.

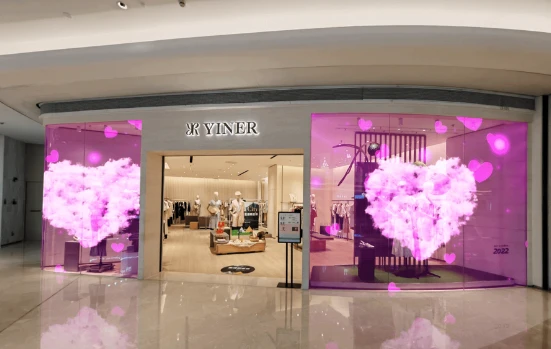

Transparent LED hian hnehna a chang:Glass curtain wall building-ah chuan facade-te chu media surface-ah an chang a, chutih rualin architecture chu a awm reng bawk. Shopping mall atrium leh glass inthenna te a awm bawk. Exhibition hall leh museum hrang hrangah digital content chu physical display chungah layering a ni. Automotive showroom hrang hrang a awm bawk. Stage leh event background-a performer-te screen hmanga an inlanna hmun.
Traditional LED hmangin hnehna a chang:Pawn lama advertisement billboard-te chu ni direct hnuaia êng tam ber mamawh. Stadium display chu 50+ meter-ah fine pixel pitch a pawimawh lohna hmunah a awm. Broadcast studio leh control room-a rawng dikna chu -inrem theih lohna hmunah te. Concert main screen-ah square meter za tam tak a zau a ni. Transportation hub information hian transparency hian engmah a belhchhah lohna hmun a tarlang.
Eng Tu nge?
Glass a tel em, chu chu i vawnhim duh em? Space hnathawh danah hian natural light hi a pawimawh em? Structure hian 30-50 kg/m2 a phur thei em? Viewing distance pangngai chu engzat nge ni? Budget-ah hian structural engineering account a ngai em?
Glass architecture leh natural lighting hmanga project category lian zel tan chuan transparent LED chu interesting alternative aṭangin default consideration-ah a inthlak ta a ni. Thil dang zawng zawng tan-pawn lam billboard, broadcast studio, stadium display-traditional LED chu a awm dan ang chiah kha a la ni reng a: finfiah, eng, man to-effective, leh opaque tak tak.
