Consumer TV sumdawnna atana hman chuan a siamtu warranty chu a titawp a ni. Procurement team tam zawk chuan hei hi a vawi hnihna emaw, a pathumna emaw thlakna- hnuah an hmuchhuak a, chu chu an "budget" solution chuan commercial panel pakhat man a pel tawh a ni.

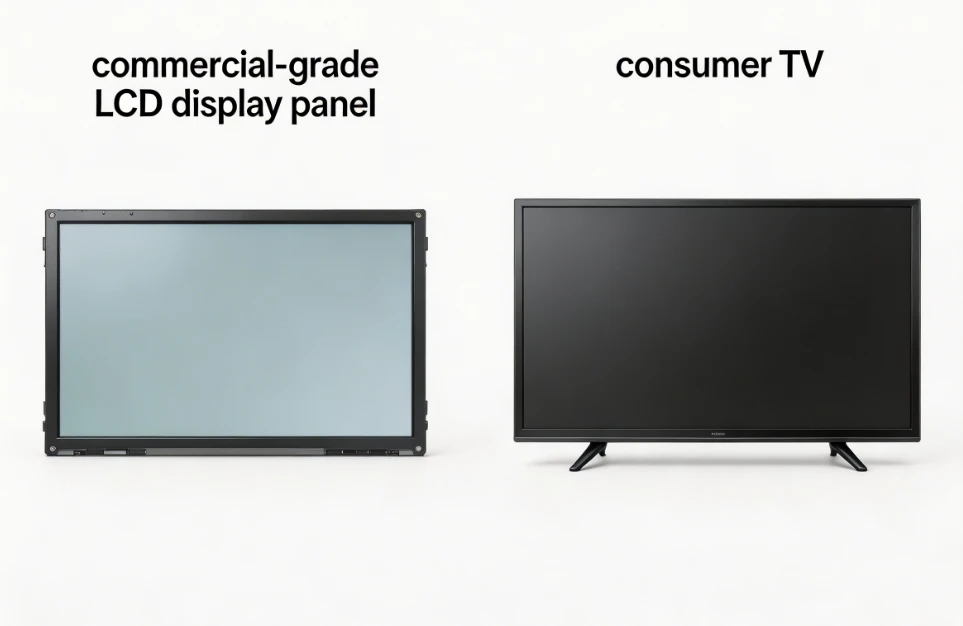

$300 consumer TV leh $1,200 man commercial LCD panel man inthlauhna hi purchase order-ah chuan a langsar hle. Spec sheet-ah chuan a danglamna hi a tlem hle niin a lang: resolution inang, screen size inang, an pahnih hian LED backlighting an nei tih an sawi. Inthenna tak tak chu thla sawm leh pali velin a lang a, chutih lai chuan consumer-grade display-te chu retail environment-a nitin darkar sawm leh pahnih chhunga tlan thinte chu hmuh theihin a hlawhchham emaw, a tlahniam emaw tan thin. Commercial panels hi darkar 50,000 atanga 100,000 chhunga hnathawh chhunzawm zel tur atana engineer a ni-mahse chu number chuan installation dik tak leh thermal management dik tak a ngaihtuah a, chu chu deployment tam zawka kal sualna hmun a ni.
Engineering A Danglam Takna hmun
Brightness ratings hian thawnthu thenkhat chauh a sawi. Consumer panel-te hian nits 200-300 an pe chhuak tlangpui a; commercial-grade LCD display panel retail atana hman tur chu indoor hman atan nits 400-700 atanga tan niin window-facing installation atan nits 2,500-5,000 thleng a ni. Chawhnu lam ni hian i storefront glass a rawn deng hian hei hi aesthetics chungchang a ni lo-customer ten i pricing an chhiar theih em tih hi a ni.

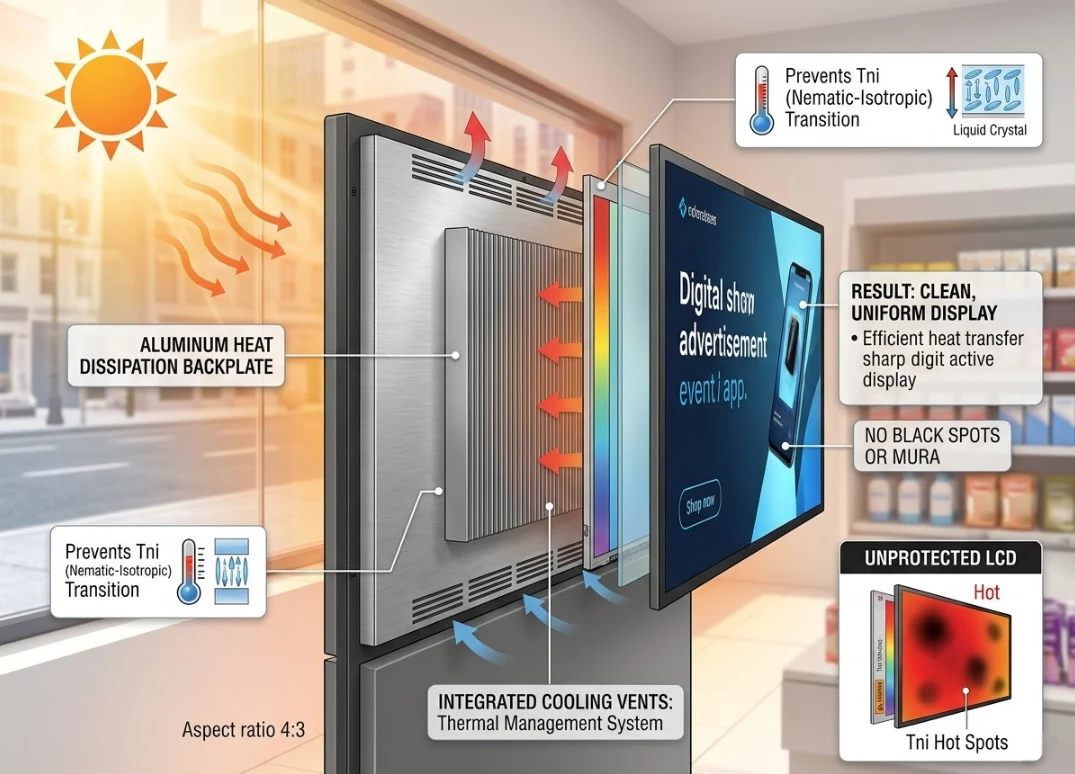

Thermal management hian inthenna tak tak a siam a ni. Installation site kan evaluate hian zawhna hmasa ber chu screen size-airflow a ni lo. LED junction temperature 85℃aia sang chuan luminous efficacy chu℃10 additional ah 3-5% in a ti tlem a ni . Commercial panel-te chuan hei hi aluminum heat dissipation backplate thuk zawk hmangin an sawifiah a; consumer unit-te hian hetah hian an skimp a, a chhan chu in lama hman hian thermal limit a nawr ngai lo. HVAC circulation tha lo sealed retail environment-ah chuan he danglamna hian i display chu peak summer hour-ah a black out em tih a hril a ni.
Buyer tam zawkin an tawn ngai loh specification a awm a: Tni, nematic-isotropic transition temperature. Panel temperature hian he threshold hi a pelh chuan screen-ah hian black spot lian tak tak a lang thin. Industrial-grade commercial LCD-te hian high-Tni liquid crystal formulations an hmang a, a bik takin khaw lum hmuna window-facing retail installation-te chuan standard panel-te chu summer hmasa berah an limit a pelh dawn avangin.
ROI: Numbers hi khawi atanga lo chhuak nge tih hi a pawimawh

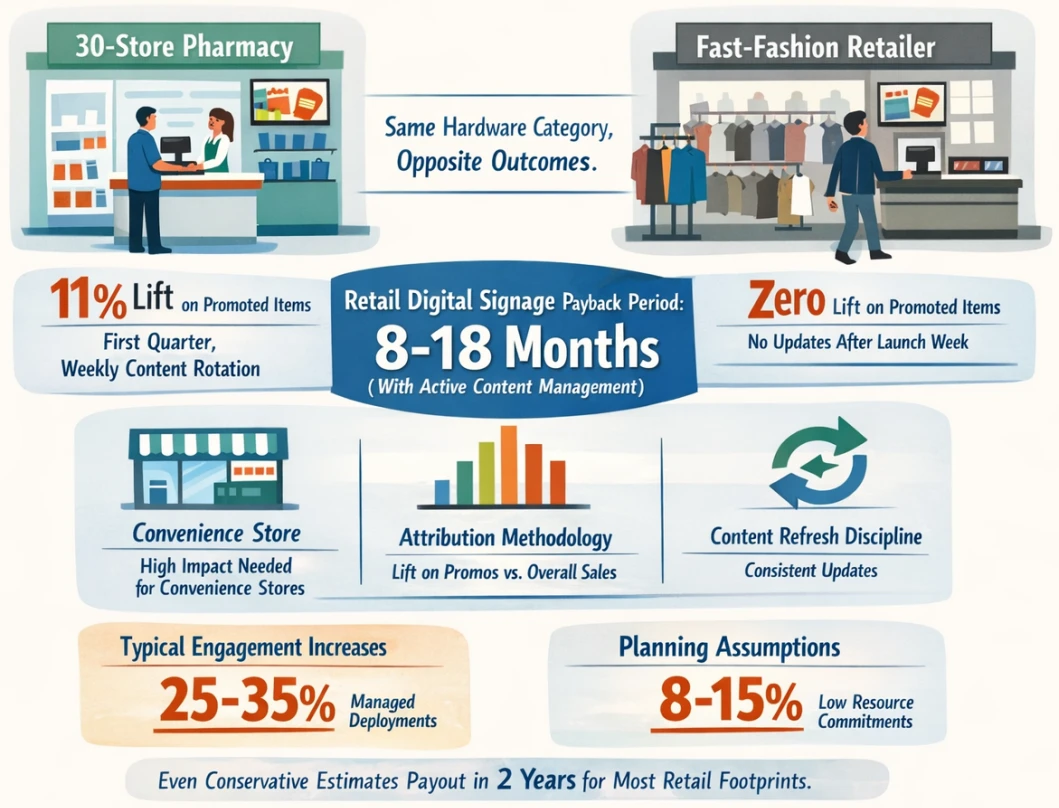

Midwest-a kan thawhpui 30-store pharmacy chain chuan quarter hmasa chhung khan promoted item-ah 11% lift a track a-kar tin content rotation leh checkout-a dah a ni. Fast-fashion retailer pakhat, screen count a let hnih nei chuan zero measurable impact a hmu a, a chhan chu launch week hnuah promotional content update a nih loh vang a ni. Hardware category inang, outcome inthlau tak tak.
Retail digital signage atana payback period hi content management active a nih chuan thla 8 leh 18 inkar a ni tlangpui. He range tidanglamtu variable te: transaction value (convenience store-te chuan dollar impact ang chiah hit turin furniture retailer-te aiin influenced purchases an mamawh zawk daih), attribution methodology (promoted item-a lift tehna hian dramatic percentage a lantir a; overall store sales hian modest single digit a lantir), leh refresh discipline.
Industry report-a engagement tihpunna 25-35% tarlan te hian mi pakhatin content a enkawl tak takna deployment a entir a ni. Content rotation-a dedicated resources commit peih lo client-te tan planning assumption atan 8-15% kan quote-a conservative a, retail footprint tam zawk tan kum hnih chhungin a la pencil chhuak tho.
Kum nga-Kum TCO: Sawihona khartu Math
| Cost Element a ni | Consumer TV a ni | Commercial LCD a ni |
|---|---|---|
| Hardware hmasa ber a ni | $300/unit a ni | $1,200/unit a ni |
| Kum 5 chhunga thlak tur | Unit 2-3 + hnathawk | 0 |
| Kum 5 chhung hardware man a ni | $1,100-1,800 | $1,200 |
| Warranty coverage a awm bawk | Sumdawnna atana hman atan voided a ni | Kum 3 standard a ni |
| Energy danglamna | Baseline a ni | 15-25% in a hniam zawk |
Nitin darkar ruk aia tam screen i run thinna scenario tinah commercial panel hi a man a tlawm zawk. Darkar riat-a hnathawhnaah chuan crossover hi thla 30 vel a thleng a, darkar sawm leh pahnih-ah chuan thla 18 a ni tawh a, thla 24-deployment horizon piah lama client planning eng pawh tan consumer alternatives quote kan titawp tawh-support burden chauh hi margin worth a ni lo.

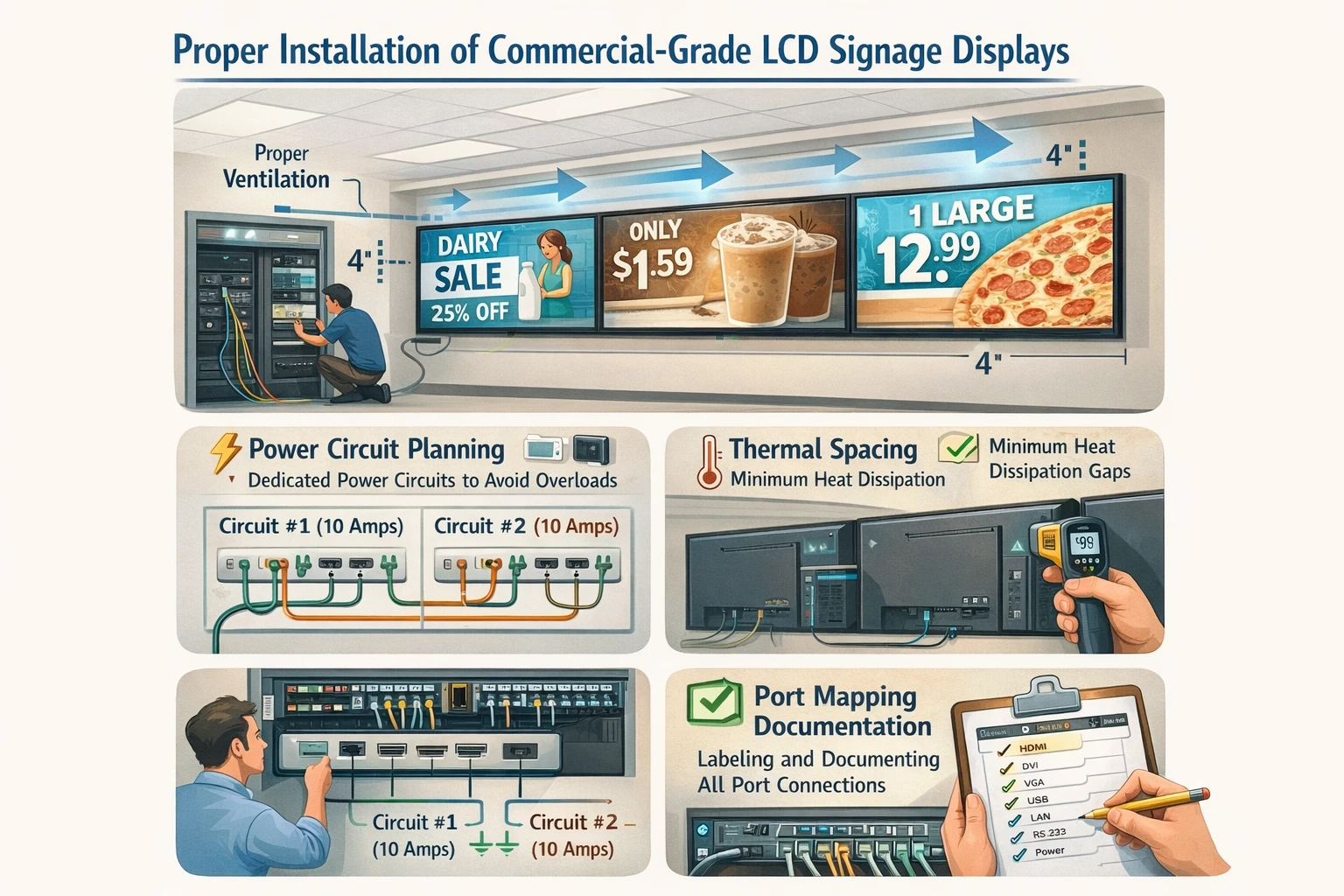

Installation Failures Kan Hmu Tak Tak
Ni 90 hmasa chhunga kan service call zaa 60 chu hardware ni lovin configuration a ni. A tlangpui ber: input source mismatches a ni a, installer ten HDMI chu port 2 ah an connect a, port 1 atan media player an configure a, install-a ports labeling hian he category hi a ti bo vek a ni. Tunah chuan port mapping documentation chu standard deliverable angin kan dah tel ta-engmah a sen lo va, early service volume pawh a chanvein a ti tlem bawk.
Power circuit planning hi retrofit environment-ah pawh a hlawhchham fo thin. Commercial-grade lcd signage display hian unit khatah 2.5-4.5 amps a draw a, full brightness a ni. Peak load chhiar lovin 15A circuit-ah display pali chain la, hardware failure ang maia lang mahse a chhiat loh tur intermittent blackout i hmu ang. NEC electrical code hian 80% maximum sustained load a tarlang a-a specification chu AV integrator-te'n an zawm a, mahse general contractor-te chuan "screen tlemte dah belh mai mai" hian an ngaihthah fo thin.
Retail environment tight takah chuan thermal spacing hi ngaihthah a ni. Thla 18-a display hlawhchhamte chu kum sarih chhung daih tur a nih thu kan document tawh a, hei hi floor space inches li save tura thutlukna siam mounting vang vek a ni. Tunah chuan kan standard site assessment-ah hian peak operation hours-a thermal imaging-an extra step a awm a, hei hian kum kalta chhung ringawt khan warranty dispute pathum a veng thei a ni.
Supplier Ecosystem: Kan Recommend Tak Tak
Retail-a wholesale lcd display panel procurement atan chuan thutlukna chu CMS flexibility nge ecosystem integration i duh tih ah a innghat a ni. Samsung MagicINFO hian an hardware-ah a lock che a, mahse multi-site management a ti awlsam zawk thung. BrightSign ang third{3}}party platform te hian integration hna tam zawk an mamawh a mahse site mamawh bik atanga panel vendor te mix theih a ni-window-facing location te hian back-of-store aiin brightness sang zawk an mamawh mai thei a, vendor pakhat chu across pahnih atanga nawr luih hian unnecessary cost a tipung a ni.
I spec Samsung hi IT resources dedicated nei client te tan kan spec a, throat pakhat choke duh tan. Hardware cost optimization ngaih pawimawh ber leh complexity enkawl turin integrator relationship nei client te tan third-party CMS hmanga mixed deployment kan spec a ni. Universal answer a awm lo-mahse chhanna dik lo a awm a, chu chu panel man chauh atanga thlan leh thla ruk hnua CMS subscription model hmuhchhuah hi a ni.
FAQ
Q: Retail lcd display panels atan hian eng brightness rating nge ka mamawh?
A: Indoor standard atan nits 400-700; 1,000+ nits chu window-facing atan; Pawn lama kiosk atan nits 2,500+ a awm.
Q: Commercial-grade lcd panels hi eng chen nge a awm tak tak?
A: Hnathawh dan dik tak hnuaiah darkar 50,000-100,000 MTBF-kum 5-11 chhung hnathawh chhunzawm zel a nih chuan, thermal management leh brightness settings a zirin.
Q: Nitin darkar riat chauh screen a kal chuan commercial display ka mamawh em?
A: Hun kal zelah Durability advantage chu a zual zel. Thla 24 chhunga deployment horizons piah lamah chuan commercial TCO chu a tlahniam zawk a ni.
Step dawt leh tur
Retail deployment i scope a, hetia kan tarlan installation failure te hi pumpelh i duh a nih chuan kan engineering team hian screen sawm chhunga project hrang hrang tan complimentary site assessment an kalpui thin. Hardware-hetah hian assessment i dil hmain thermal risk, circuit capacity issues, leh content management mamawh te kan flag ang.
