Heng hlawhchhamnate hian pattern an nei a, a tam zawk chu minute 30 emaw a aia rei lovah hriat theih a ni. He guide hi troubleshooting hnathawh tak tak dan vel atanga siam a ni a: screen-a i hmuh theih atanga tan a, a chhan lam hawia hnathawh. I maintain emaw pawh nisesumdawnna atana hman tur LCD display screen te a awm bawkretail-ah te, public kiosk-a panel kalpui te, emaw, development laiin embedded hardware debug te, diagnostic process chu a inang vek a ni.
Quick Symptom Reference a ni
He table hi i filter hmasa ber atan hmang rawh. A chhan hrang hrang hian symptom inang a siam thei a, chuvangin chhanna hnuhnung ber ni lovin, bul tanna tur angin en rawh.
| Symptom a ni | A chhan awm thei ber | Thiltih hmasa ber |
|---|---|---|
| Screen a thim vek a, backlight a awm lo | Power a chhiat emaw fuse a puak emaw | Module pin-ah input voltage teh rawh |
| Screen on mahse a thim hle | Backlight a chhiat emaw LED array a chhiat emaw | Backlight circuit chu mahni inrintawkna neiin test rawh |
| Flashlight hmang chauha hmuh theih image faint | Backlight a chhiat chuan - panel ngei pawh a thawk thei | LED strip leh driver circuit te enfiah thin ang che |
| Flickering emaw flashing emaw display a awm | Ribbon cable hrual emaw supply voltage nghet lo emaw a awm | Connector zawng zawng chu reset vek rawh; supply ripple enfiah rawh |
| Screen sir zawng zawngah vertical emaw horizontal emaw line a awm | Substrate crack emaw driver IC fault emaw a awm | Mit hmuh theiha enfiah; driver board thlak a ni |
| Scrambled emaw, missing emaw character te | Protocol inmil lo emaw firmware bug emaw a awm thei | Datasheet nen inbiakpawhna settings te chu verify rawh |
| White screen ah hian content a awm lo | Initialization a chhiat emaw signal hloh emaw a nih chuan | Protocol config chu enfiah rawh; reset hun tur chu confirm rawh |
| Persistent thlarau lem emaw burn-in | Static image chu aging panel ah a rei lutuk | Power cycle a ni a; run pixel-test pattern tihthar leh rawh |
| Touch input a register lo | Touch cable chhia emaw firmware chhia emaw | Ribbon cable chu enfiah rawh; re-flash touch controller a ni |
| Random reset emaw power cycling emaw a awm thei | Voltage spike emaw current capacity tling lo emaw a ni thei | Oscilloscope hmanga supply teh; surge protection a belhchhah bawk |
LCD Module Failure Hi Eng Nge Ti Tak Tak?
Backlight tihchhiat a ni
Backlight hi LCD module-a single-component failure tam ber a ni. LED array te chu an hnathawh chhung zawngin an dim zauh zauh - siamtute chuan product an qualify aJEDEC semiconductor rintlakna test standard hrang hrang, leh rated lifetime hi consumer-grade leh industrial-grade panel hrang hrangah a inang lo hle. I module bik datasheet chu i operating condition hnuaia a rated service life atan en fo la, generic industry figure ni lovin.
Backlight chhe tawh display chuan electrical check a la paltlang reng a ni. Panel hian hna a thawk - a, normal ambient light-ah readable image a siam thei lo chauh a ni. Room thim takah chuan screen hi pawm theih angin lang mahse office lighting eng tak hnuaiah emaw pawnah emaw hmuh theih loh hnaih a nih chuan backlight hi test hmasa ber a ni.
⚠️ Thil tihsual tlanglawn:brightness chu maximum thlenga nawr a, dimming backlight chu a compensate. Hei hian LED wear a ti chak a, component chhe tawh -a hman theih hun la awm chu a ti tawi bawk. A tir atanga brightness headroom dik tak nei hardware thlan hian harsatna chu a pumpelh vek - see what distinguishessumdawnna-grade LCD module te a niconsumer-grade alternative atanga lak a ni.
Connector leh Cable lama harsatna awm thei
Ribbon cable, zebra connector leh solder joint te chu vibration, thermal cycling leh repeated flex hnuaiah a chhe thin. Failure mode hi a inthlak danglam fo thin: orientation thenkhatah flickering, vibration hnuaia display segment tlak, emaw, startup-a hnathawk mahse operating temperature-a fail screen. Parts order hmaa connector tin reseating hian field complaint tam tak chu zero cost-in a chinfel sak a ni.
Environment lama harsatna (Environmental Stress) a awm
Cold hian liquid crystal response a ti hniam a; heat hian polarizer aging leh adhesive delamination a ti chak a; humidity hian a chhung lam atanga electrode te a tichhe a, display segment bo a siam a, kar tam tak chhung chu a chhe zauh zauh thin. A chhe ber-case condition atan tarlan fo la, average ones ni lovin. Environment mamawhna hmuna hman tur atan, .integrated LCD display solutions leh environment ratings inmil tak tak a awm bawkfield a chhiat hnuah ni lovin, deployment hmaa evaluate tlak an ni.
⚠️ Thil tihsual tlanglawn:lab condition-a display test a, pawnah emaw, cold warehouse-ah emaw, moisture awmna - bulah emaw a thawk ang tih ngaihtuah a, module-a rated IP class leh temperature range chu deployment environment nen a inmil tak tak em tih finfiah lovin.
Power Supply chungchangah harsatna leh Driver Fault te
Voltage spike hian driver IC a tichhia nghal. Supply ripple - DC rail --a AC noise hian chhiatna fiah lo zawk, cumulative zawk a thlen a: random reset, image noise, leh LED dam rei zawk. I module datasheet-ah a ripple voltage phal zat sang ber chu en rawh; panel chi hrang hranga hman tur universal threshold a awm lo.
Firmware bug leh protocol inmil lohna hi category hran a ni a, hardware failure chu rintlak takin a entawn a ni. Board swap emaw software update hnua white screen emaw scrambled output emaw hi configuration error a ni fo thin a, panel chhe tawh a ni lo. He inthliarna hi engtikah ngeLCD leh LED bar screen format te khaikhin a ni- technology hrang hrang hian protocol behavior leh fault signatures hrang hrang an nei a.
Six-Step Diagnostic Process neih dan tur
Chungte chu a hnuaia mi ang hian hna thawk rawh. Fault - i hriat veleh stop nghal rawh unecessary swaps waste time leh variable thar introduce rawh.
Step 1 - Power-on hmain hmuh theiha enfiah.Panel hnung lama crack, condensation, PCB-a burn mark, leh ribbon cable displaced emaw kinked emaw zawng rawh. Taksa lama chhiatna i hmuh chuan power hmang suh. Connection shorted chuan cascading damage a thlen thei a, chu chu original fault aiin a man a to zawk daih.
Step 2 - Input voltage chu enfiah rawh.Module-a power input pin-ah multimeter hmang rawh. TFT panel-a rated voltage tlangpui chu 3.3V, 5V, emaw 12V - i datasheet check rawh. Spec pawn lama 5% aia tam chhiar chuan chhui chian a ngai. Intermittent faults tan chuan oscilloscope dah la, datasheet-a allowable specification nena inmil supply ripple check rawh.
Step 3 - Backlight chu isolate rawh.Room thim takah chuan panel chung lamah flashlight chu angle-in eng rawh. Faint image i siam theih chuan panel chu a functional a, backlight chauh a fail a ni. He test pakhat hian second 10 hnuai lam - chhungin diagnostic tree chanve a ti bo a, a thawk tha ve ve bawkbar-format LCD a rawn lang angstandard rectangular panel-a awm ang bawkin.
Step 4 - Cable leh board te chu methodical takin swap rawh.Test pattern tha hriat tawh-load rawh. Ribbon cable chu verified working unit hmangin thlak leh rawh. Fault hian cable a zui a nih chuan cable hi a buaina a ni. Board-a a awm reng chuan board chu a dawttu a ni. Component man tlawm ber, a hman theih ber chu thlak hmasa phawt ang che.
Step 5 - Inbiakpawhna protocol chu enfiah rawh.Board swap hnua white screen emaw garbled output emaw hi configuration error a ni deuh ber. Datasheet nen baud rate (UART), SPI mode (CPOL/CPHA), emaw I2C address emaw chu finfiah rawh. He step hian faults in a zatve aia tam a man akiosk display hmun hrang hrangah a awmfield-a module thlak danglamna hmun, documentation kim lo atanga thlak fo thin.
Step 6 - Bench-a field dinhmun chu replicate leh rawh.Lab-a hnathawk mahse deployment-a hlawhchham display hian thermal emaw vibration root cause a nei fo mai. Connector 22℃a marginal a nih chuan 55℃ah a inhawng vek thei . Bench testing - laiin controlled heat hmang la, temperature engemaw zat aia sang fault lo lang chuan thermal expansion chu mechanism angin direct-in a hriat theih.
Repair nge Replace? Thutlukna siamna Framework a ni
Repair hian awmzia a nei engtikah ngefault chu replaceable component pakhatah localized a ni - cable, backlight array, firmware update - module hi system pakhata tel a ni a, replacement sourcing-ah hian downtime emaw redesign emaw nasa tak a awm a, repair cost chu unit thar aiin a tlem zawk tih a chiang hle.
Replacement hian awmzia a nei zawk a, engtikah ngesymptom tam tak a rualin a lang chhuak thin. Dim backlight, connector wear, leh image ghosting te a lo lang dun hi service life tawp tilangtu rintlak tak a ni a, fixable fault pakhat mah a ni lo. Tuna module pakhatin specification tha zawk - brightness sang zawk, operating temperature zau zawk, ingress protection tha zawk - a pek hian thlak danglam pawh a awmzia a awm a, chu chuan nakin lawka maintenance burden a tihziaawm ang.
Kawng pahnih zinga pakhatah pawh inpek hmain heng zawhna pangate hi thawk la:
- Hei hi unit a chhiat hmasak ber a ni em, a nih loh leh a hmain a fail tawh em?
- Fault hi component pakhat, thlak theih chauh a ni em?
- Repair cost zawng zawng - parts, labor, leh downtime - te chu replacement cost hnuaiah chiang takin a awm em?
- Repaired unit chu a takin system-a service mamawh la awm chhung zawngin a awm thei ang em?
- Tuna thlak danglam mek hian he application atan hian awmze nei takin specification tha zawk a pe em?
Chhanna pathum emaw a aia tam emaw chuan thlak danglamna a duh chuan, chu chu a tlangpuiin kawng chiang zawk a ni. A kimchang zawng zawng browse rawhproduct hrang hrang a awmemawspecialist nen inbiakna neihpui rawhsourcing chungchang a ni. Retail leh signage context atan chuan,retail signage atan LCD configuration hrang hrang siam a nidirect like-for-like swap aiin long-term economics tha zawk an pe fo thin.
Preventive Maintenance tih a ni
- Environment control dan tur: 1.1.Module-a rated temperature leh humidity range chhungah deploy la, ruahmanna siamna atan worst-case conditions hmangin. High-humidity environment-ah chuan IP ratings verified nei sealed enclosure hi thil tul a ni a, fimkhur tur a ni lo.
- Power hman dan tur: 1.1.Hardware surge protection nei regulated supplies hmang rawh. Backlights chu maximum brightness-a tlan chhunzawm zel loh tur - adaptive brightness control hian LED wear a ti tlem a, usability-ah hmuh theihin nghawng a nei lo.
- Inspection neih hun tur ruahman:Thla tin - connector seating check la, condensation zawng rawh. Quarter tin - chuan diagnostic test pattern kalpuiin load hnuaia supply voltage a verify thin. Kum tin - supply ripple check la, optical layer te chu delamination emaw polarizer aging emaw a awm leh awm loh enfiah thin.

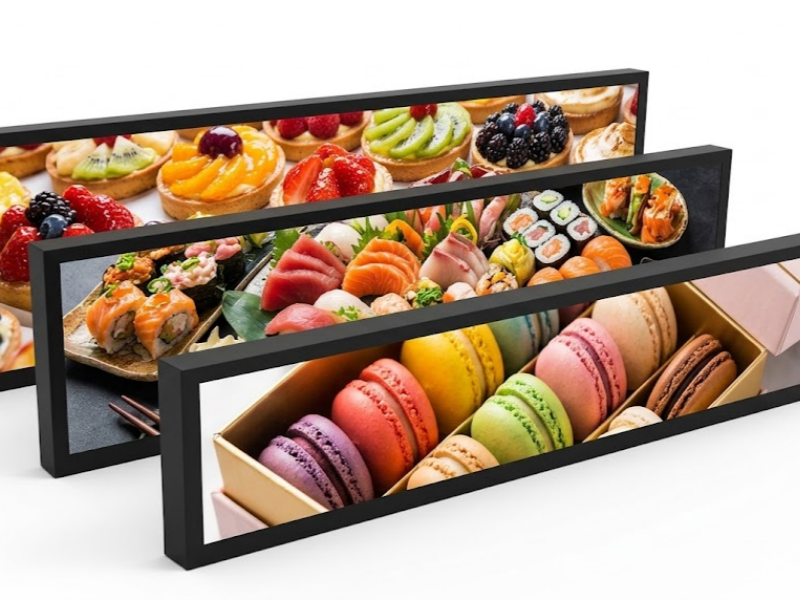

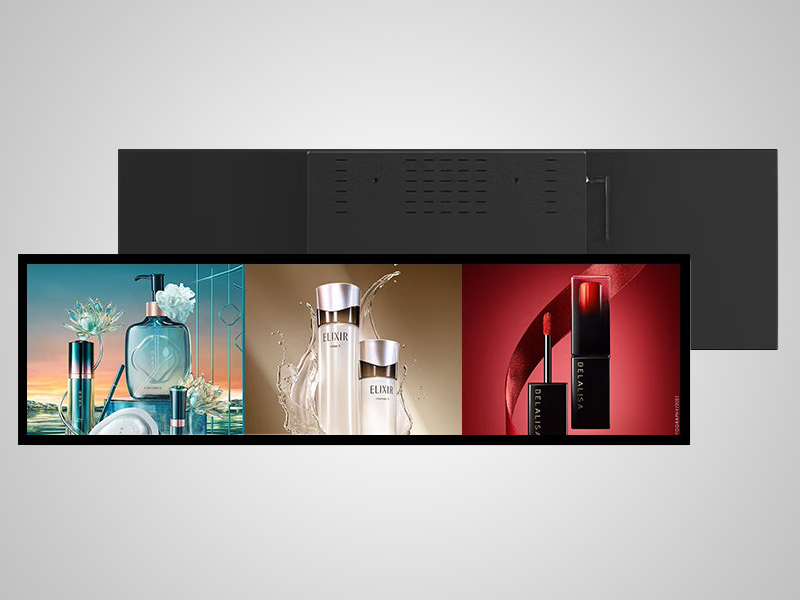

Tanmahni-service terminal a nideployment te chu high-traffic environment-a kalpui chhunzawm zel a nih chuan, quarterly check hi a sang ber-value single maintenance activity a ni.Supermarket hmuna hman thin LCD screen hrual (stretched LCD screen) testandard maintenance schedule-in a ngaihtuah kim loh theih tur humidity leh cleaning chemicals-a exposure bik hmachhawn.
Zawhna Zawh fo thin
Ka LCD ah chuan screen dum - a rawn lang a, panel a chhe tawh em?
A ni hauh lo. White screen hi taksa lama chhiatna aiin inbiakpawhna emaw initialization emaw a hlawhchham fo thin. Protocol configuration - baud rate, SPI mode, emaw I2C address - emaw chu module datasheet nen finfiah rawh. Hei hi firmware update emaw board swap emaw hnuah settings transfer dik lo mai thei a nih hnuah a pawimawh hle.
Engtin nge backlight emaw LCD panel emaw a fail tih ka hriat theih ang?
Room thim takah chuan screen surface-ah flashlight chu angle-in eng rawh. Faint image i hmuh theih chuan panel hian output a siam dik a, backlight chauh a fail tihna a ni. Flashlight hnuaia image awm lo tak tak chu panel, driver board emaw an inkar signal path-ah emaw fault a awm tihna a ni.
Module thlak ngai lovin display flickering chu fix theih a ni em?
A tam zawkah chuan, a ni. Flickering hi ribbon cable loose vang emaw, marginal solder joint vang emaw, supply ripple tam lutuk vang emaw a ni tlangpui. Connector reseating leh load hnuaia supply voltage stability verify hian component thlak ngai lovin flickering complaint tam zawk chu a chinfel sak thin.
Display-a tui awm tawh chu power pek hi a him em?
No. Power i hman hmain module chu low-humidity environment-ah a vawt kim vek tur a ni. Display hnim (wet display) power on hian electrode corrosion leh short circuit a awm a, chu chuan panel chu a tichhe vek thei a ni.
Engvangin nge ka display hian bench-ah hna a thawk a, field-ah erawh a hlawhchham?
Intermittent field-only failure hi operating temperature-a thermal expansion, vibration-induced connector intermittency, emaw startup laiin condensation avanga lo awm a ni deuh ber. Bench testing neih laiin deployment environment tak tak - temperature, vibration, humidity - chu replicate leh rawh. Condition harsa tak takte chu a inmil zawka enkawl thei hardware thlan dan tur kaihhruaina atan,he high-performance LCD display options chungchang tlangpuispecification danglamna pawimawh ber berte a huam a ni.
Tawpna
LCD module failure chu i zawn tur i hriat veleh chhiar theih a ni. Panel thim tak, screen flickering, garbled output - tin hian a chhan awm thei list manageable-ah a map vek a, structured diagnostic process chuan components random taka thlak ai chuan fault tak tak chu a hmu rang zawk a ni. Chutiang bawk chuan siamthatna chu a kal tawh tih chiang takin a hrilh bawk che a, thlak danglam chu chhanna dik a ni.
