Electronic Shelf Labels (ESL) hian retailer-te’n pricing an enkawl dan a thlak danglam mek a ni. Installation process hian store pakhatin competitive edge a neih leh neih loh emaw, maintenance burden man to tak a rochun emaw a hril a ni.
System Architecture chungchanga thil pawimawh ber berte

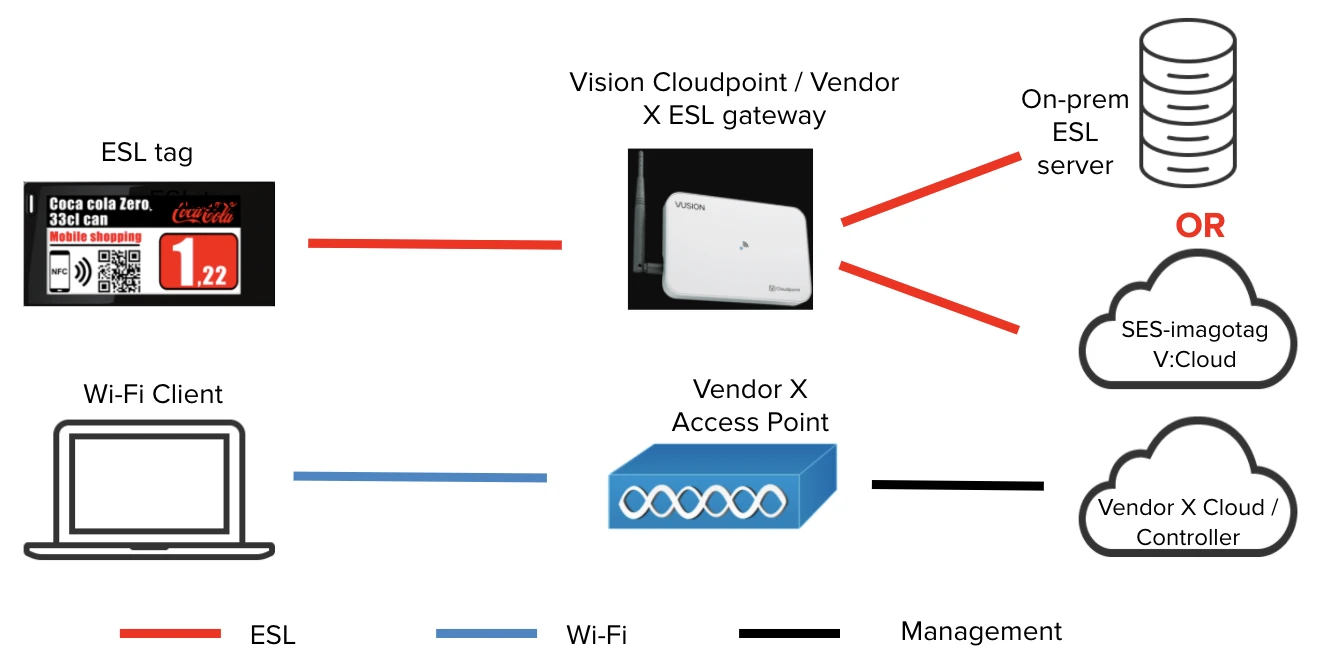

ESL system hi component pali inzawmkhawm a ni. An inzawmna hriatthiamna hian team-te tihsual man to tak tak, tihsual nawn fo thin chu a veng thei a ni.

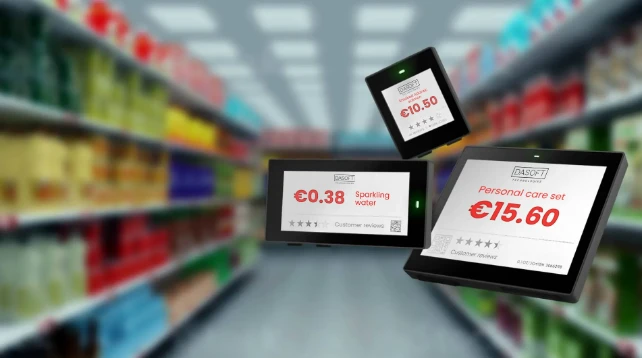

Electronic Labels hmanga siam a nielectrophoretic display technology hmanga entir a ni. Charged black and white particle awmna microcapsules te chu applied voltage hnuaiah an migrate a, power tel lova awm reng thei stable image an siam thin. He physics hian battery dam chhung chu normal operating condition hnuaiah kum 3-5 chhung a daih thei a ni-Hanshow-a Nebular series hian kum 5 mark a hit fo a, budget Chinese manufacturer thenkhat erawh chuan kum 2.5 vel chauh a thleng thei thung. Display size hi standard shelf edge tan inches 1.54 atanga end-cap promotion atan inches 12.2 thleng a ni.

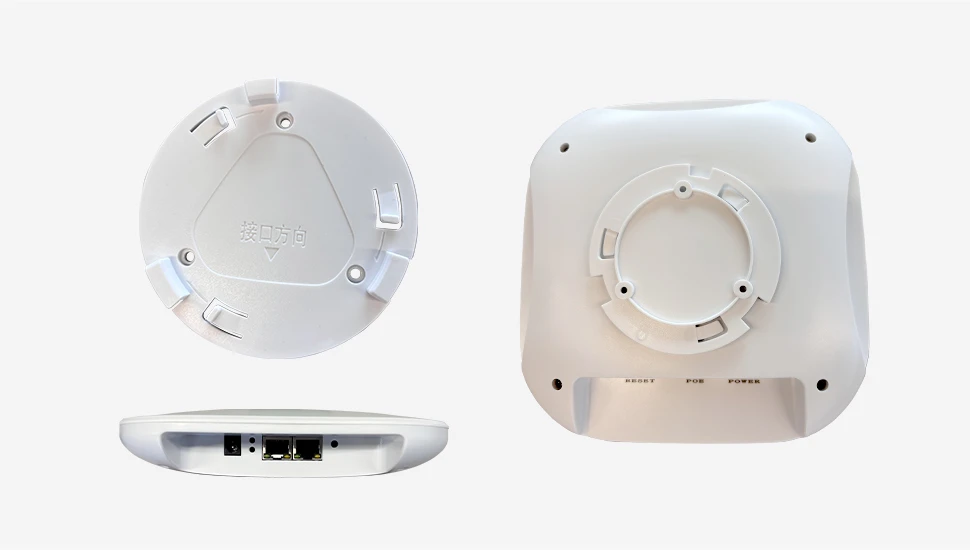

Base Station hrang hrang (Access Points) te chu 1.1.network infrastructure leh wireless label inbiakpawhna te inzawmna siam a ni. SES-imagotag-a VUSION system hi 2.4GHz-ah a thawk a, Pricer hian model ṭhenkhatah chuan proprietary infrared/RF hybrid a hmang thung. Base station tin hian an coverage radius chhungah label za tam tak atanga sang tam tak an enkawl a-SES-imagotag chuan access point khatah 15,000 a awm tih a sawi a, mahse a dik tak chu 2,000-3,000 a ni a, dense retail environment-ah chuan pawm theih loh drop rates a lan tan hmain a ni.
Management Server a niESL software stack chu a execute thin. Product database a enkawl a, display template a render a, update command a queue a, system event a log bawk. Kum thum kalta chhung khan cloud deployment-ah nasa takin hma a sawn a ni. Label 10,000 hnuai lam retailer tam zawk tan chuan cloud hi tunah chuan default recommendation a ni tawh.

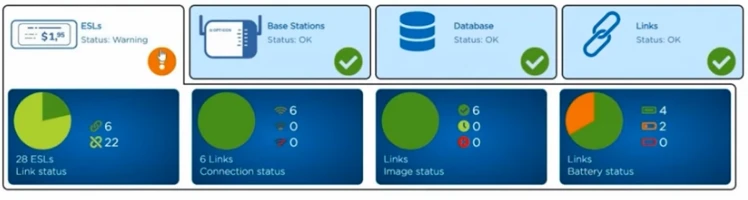

Management Software hmanga enkawl a nilabel registration, template design, content scheduling, leh system monitoring atana control interface a pe a ni. API quality hi vendor hrang hrangah a inang lo hle. Pricer-a API documentation hi a tha hle. SES-imagotag's chu a tha chho hle a, mahse gap a la nei tho. Vendor tenau zawk thenkhat chuan API an nei a, chu chu afterthought ang maiin a lang.
Site Survey: Installation hlawhtling tak neih theihna tur lungphum
Kum 2022-a Retail Industry Leaders Association-in zirchianna an neihah chuan site survey ṭha tawk lo hian ESL deployment hlawhchham zinga 60% vel a thlen a, hei hi nasa taka siamṭhat a ngai a ni.
Survey khauh tak neih a ngai a nidarkar thum aia tlem lo2,000-square-meter-a zau dawr pakhat atan.

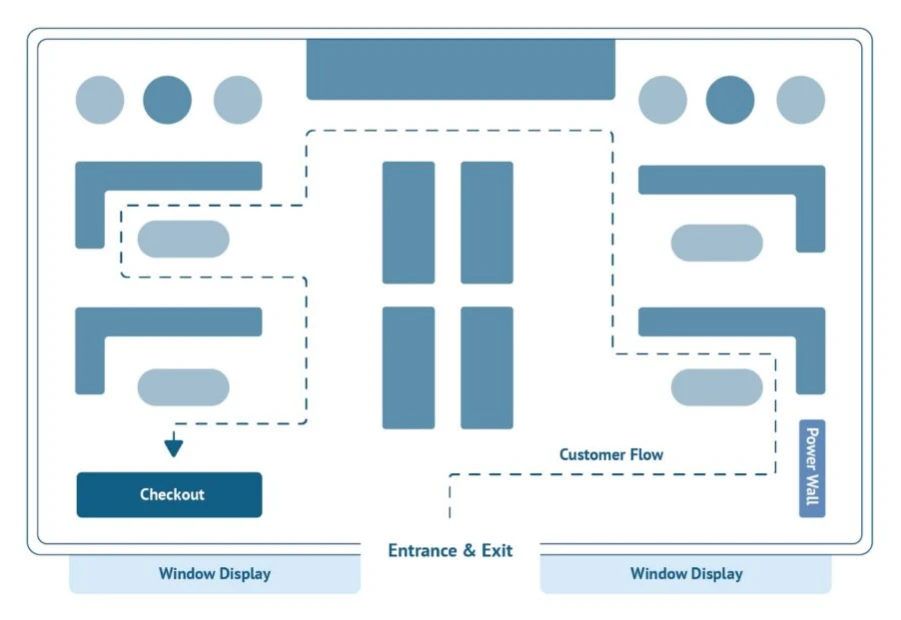

Taksa Environment Assessment neih a ni
Floor Plan Document siam a ni
Shelf awmna, orientation, san zawng, leh sakna hmanrua te tarlanna floor plan chipchiar tak tak la emaw siam emaw. Thu hriat tur mamawh chu refrigeration unit awmna leh chi hrang hrang, structural column leh wall, ceiling san zawng danglamna, leh electrical leh network infrastructure awmsa te a ni.
Store-in floor plan a pekte chu finfiah tur a ni. Ohio-a Kroger installation pakhat chuan floor plan pek a ni a, kum li liam ta a ni a, refrigeration section siamthat kim a ni lo. Base station position-te chu installation ni hnihnaah ruahmanna siam thar a ngai a ni. Chu dinhmun chu finfiahna dik tak nen chuan pumpelh theih a ni.
Shelf hrang hranga inthliarna
Shelving type tin hian RF signal atan an che dan a inang lo a, mounting hardware order hmain store chhunga thil awmte hriatthiam a pawimawh hle.
Standard metal gondola hmanga siam a ni-retail store tam zawka chhang leh butter-chuan signal attenuation moderate a thlen thin. Hetah hian rail clip te hian hna a thawk tha hle a; Pricer-a K-series clip leh SES-imagotag-a SmartTAG clip-te hian hlawhtlinna an nei chhunzawm zel a ni.Wire basket ah dah a nia nihna takah chuan open design hian RF interference tlem ber a siam avangin hnathawh a awlsam zawk. Hook adapter hi a tangkai hle a, mahse vibration issues hi high-traffic produce area-ah a awm thei a, chutah chuan customer ten thil an man reng thin.
Glass display case te a awm bawkare straightforward-low attenuation, and either adhesive or magnetic mounting works. 3M VHB tape hi permanent installation atan chuan a tha zawk a, a chhan chu hun kal zelah a shift loh vang a ni.Refrigerated case-ah kawngkhar khar a ni-hei hi project hlawhchhamna thlentu configuration a ni. Glass leh metal framing hmangin attenuation nasa tak a awm thin. Pawn lam magnetic mount chauh a ni. Vendor assurance eng pawh nise internal placement tih tum loh tur a ni. Drop rates hi internal placement nen chuan pawm theih loh a ni fo thin.
Freezer unit hrang hrang a awm bawkan chhe zawk daih. Internal placement hi a tha lo. Hunbi. Range extender, specialty antenna, leh repositioning hmanga experiment an neihnaah hian result rintlak a awm lo. Pawn lam atanga mount emaw, mount lo emaw.
RF Environment thlirletna a ni
2.4GHz emitter zawng zawng document vek rawh. WiFi access point te hi a chiang hle-record channel assignment te. Mahse Bluetooth beacon (customer analytics-a hman tlanglawn tak), wireless security camera, break room-a microwave oven, leh IoT sensor te hi theihnghilh suh ang che.
LED lighting system thenkhat-a bik takin smart/connected te-chuan 2.4GHz noise an siam tling a, chu chuan refresh failure a awm fo thin. Target store pakhat install-naah hian an lighting control system thar nena inzawmna an hriatchhuah hmain ni hnih chhung harsatna chinfel a ngai a ni. Engkim enfiah rawh.
Textbook approach hian PL(d)=PL(d3) + 10n log11(d/d1) + Xσ ang chi formula hmanga path loss chhut dan a huam a ni. A taka hman chuan rough rules of thumb an zir a, chutah chuan testing hmangin an validate leh thin. Metal gondola te hian base station khatah meter 12-15 vel a ni mai thei. Refrigeration bulah chuan chu chu a chanveah cut rawh. Concrete pillar hnung lamah chuan line-of-sight emaw, base station bik emaw a ngai a ni. Walk test-covered later-hi coverage hian hna a thawk em tih a hril tak tak a ni.
Label Quantity ruahmanna siam
Department tin tan shelf space linear meter khatah SKU chhiar. Grocery hian meter khatah SKU 8-12 a kalpui tlangpui. Hriselna leh mawina hi hmun tinah a awm-standard drugstore shelving hi 15-20 a ni thei a, mahse Sephora-style display hian 40+. Electronics runs sparse at 3-6 per meter a hit thei. Apparel inang chiah chiah 4-8.
Department khata shelf sei zawng zawng nen puntir rawh. Belh5% chu contingency a niproduct thar introduction atan-or10%retailer-in planogram a thlak fo chuan.
Size distribution atan chuan deployment tam zawk hi a tawp ber a ni60-70% vel chu label te tak te (1.54") a ni., 15-20% inkar (2.13") a ni., leh a bak zawng chu 2.9" leh a lian zawkah an insem a. Retailer-te chuan a tir lamah chuan 2.9" size chu underorder rengin, chutah chuan a tam zawk lei turin an rawn kir leh thin. Promotional display hian margin a tipung a, store manager-te chuan chutiang spot-te tan chuan label lian zawk an duh a ni. Chumi ang chuan budget siam rawh.
Network Infrastructure chungchang a ni
Base Station-a awm zat
Free space-a theoretical coverage hi meter 25-30 vel a ni. Chu number chu dawr tak takah chuan a tangkai lo. Metal shelving nen chuan a tak tak range a niMetre 10-15 vel a ni. Refrigeration zone te chu a tlahniam aMetre 5-8 vel a ni.
Chhiar dan tak tak chu a buaithlak lo. Floor chu obstruction type hmangin zone hrang hrangah then la, zone tin tan realistic coverage radius apply la, base station mamawh te chu sum up la, chutah chuan add rawh20% redundancy a ni. Chu redundancy chu refresh success rate 99% aia sang a awm tir a, base station a thih chuan zanlai emergency call a veng thei bawk.
Square meter 2,000-a zau grocery store chu hetiang hian a chhe ta a ni: standard shopping area chuan square meter 1,400 vel a la a, base station 4 a mamawh a ni. Square meter 400-a zau refrigeration section hian range a tihtlem avangin base station 3 a mamawh a ni. High-density cosmetics area tenau tak chuan mahni base station a mamawh a. Total chu 8 a ni a, redundancy nen chuan order chu 10 tan a ni.
Vendor-SES-imagotag in this case-quoted 6. Pure coverage lam atanga thlir chuan an dik lo lo. Mahse base station 6 chuan 97% refresh rates an rawn deliver mai thei. Unit 10 deployment hian 99.5% a tawk fo+. Chu 2.5% danglamna chu label 3,000 awmna dawr-a weekend sale atana label 75 update loh tihna a ni. Hardware cost extra hi a dik a ni.
Hmun dahna tur
A inkar ah mount rawh3.0-4.0 metre a nifloor level chunglam a ni. Chu aia hniam leh shelf obstruction chuan coverage a that. Higher leh signal strength to bottom-shelf labels chu a bo-chu chu high-velocity SKUs a ni fo a, update rintlak mamawh a ni.
Horizontally-ah chuan kawng hrang hranga sight line chiang tak awmna aisle intersection-ah dah rawh. Refrigeration unit chungah direct-in dah ngai suh. Compressor interference chauh hian harsatna a thlen ang.

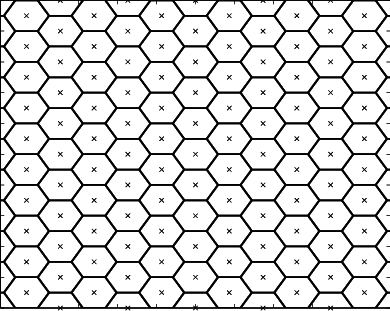

Deploy in ahexagonal grid hmanga siam a nisquare ai chuan. Hexagonal cells hian base station count inang chiah chiah hmangin area coverage 13% velin a tha zawk a ni. Hei hi deployment hrang hrangah teh a ni tawh.
Switch leh Cabling te a awm bawk
PoE+ switch a nian mamawh-802.3at port khatah 25.5W tal neiin. Fast Ethernet ni lovin gigabit hmang rawh. Label lian zawk tan image data chu 100Mbps link-ah bottleneck a ni ang. VLAN segmentation leh QoS atan managed switch la rawh. Port count hi base station count bakah nakin lawka tihpunna tur headroom 30% a ni tur a ni.
Cableing atan chuan, .Cat6 emaw 6A emaw hmanga ven a ni, TIA-568 khatah meter 90 maximum run, parallel run-ah power cable atanga 30cm inhlat tur. Conduit emaw cable tray emaw hmang la, a bik takin ceiling infrastructure hmuh theihna dawrah chuan hmang rawh. Heng zawng zawng hi ESL-specific a ni lo-network installation practice tha tak standard a ni.
Base Station dahna tur a ni

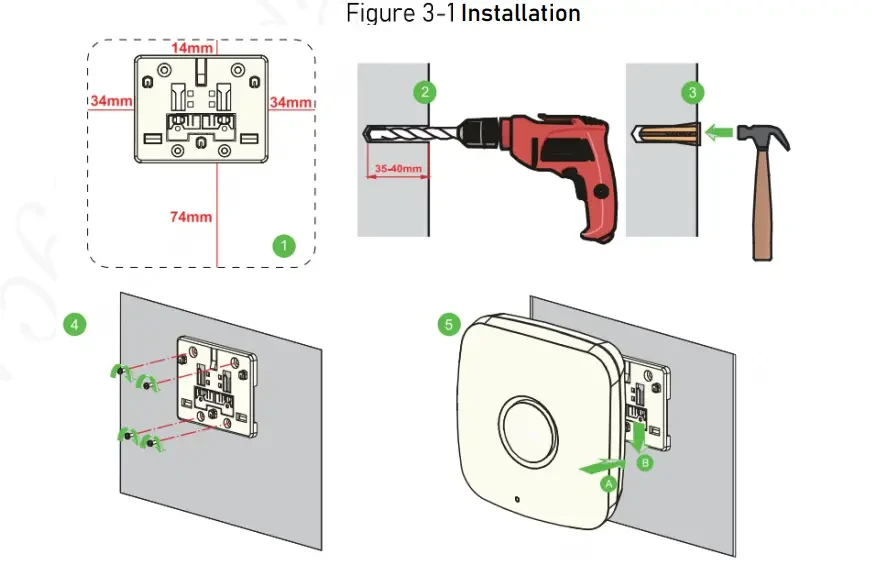

Hmanraw leh Bungrua mamawh
Power drill hammer function nei, 8mm masonry bits (ceiling concrete hian hengte hi a ei avangin spare rawn keng rawh), cable crimping tool, cable tester, laser distance meter, spirit level, torque screwdriver. Materials atan: vendor-in a supply mounting bracket (substitute suh), expansion anchor, Cat6 patch cable sei hrang hrang, UV-resistant cable tie, leh cable label te.
Cable label te hi optional a ni lo.
Installation tih dan tur
Laser distance meter hmangin base station coordinate te chu planning atanga physical location ah transfer tur a ni. Mounting holes te chu chhinchhiah rawh. Hetiang dinhmunah hian thlalak la rawh-client-in thla ruk hnuah engvangin nge base station pakhat chu hmun bik a awm tih a zawh chuan documentation hian arguments a save a ni.
Hole drill la, anchor dah la, bracket secure la, level verify la, torque to spec (a tlangpuiin M6 chu anchor chhungah 2-3 Nm a ni). PoE switch atanga network cable chu position tinah route la, a tawp tinah meter 1-a sei service loop dah rawh. Cable te chu meter 1 inkar ah secure la, a tawp pahnihah label rawh.
Base station mount hmain cable run apiang test hmasa phawt ang che.T568B standard zawm chungin RJ45 hmangin tawp la, chutah chuan continuity leh pin assignment test rawh. A result chu document rawh.
Cables te chu verified a nih hnuah base station ah connect la, bracket ah mount la, PoE negotiation hlawhtling tak a nihzia tilangtu power LED a eng tih verify rawh. MAC address leh a awmna hmun tak tak record rawh. Unit chu second 60 chhungin management software-ah a lang tur a ni. A awm lo a nih chuan cable termination kha check hmasa ber-90% vel chu harsatna a ni a, unit chhia a ni lo.
Label Installation a ni
Pre-Installation Inbuatsaihna
Label te hi deep sleep mode ah an thawn chhuak thin. Activation hi siamtu hrang hrangah a inang lo a, hei hian issue dang zawng zawng aiin hun khawhralna a thlen tam zawk a ni.SES-imagotag tih a nibutton hmangin press-recessed button chu LED a eng thlengin second 3-5 chhung a vawng tlat ang.A man to zawkbase station signal dik tak an hmuh chuan labels auto-wake an ti thin.Hanshow a nia tam zawk chuan battery tab lakchhuahna a hmang.Solum tih a nisensor area ruat sa chungah magnetic activation pass a mamawh a ni.
Activation method hi installation ni hmain hriat tur a ni. Team te hian darkar tam tak an khawhral a, a chhan chu tumahin activation procedure chhiar lawk an buaipui lo.
Batch-a inziak lut tur a nitih hi setup hun hman tlak a ni. Shipping documentation atanga serial number export la, management software ah import la, location code ah pre-assign rawh. Hei hian per-label installation hun chu 40% velin a ti tlem a ni. SES-imagotag hian bulk import hi a thawk tha hle. Hanshow's hian CSV formatting bik documented tha lo a mamawh-standard import-in error a throw chuan templates an support call rawh.
Binding tih dan tur
Pre-assigned positions neia planned deployment atan chuan, .sequential binding a nihna a thawk tha hle. Technician chuan designated position-ah a kal a, label barcode a scan a, system chuan pre-assigned binding chu a confirm a, technician chuan a mount a, system queues update a ti bawk. Installer tawnhriat ngah tak takte chuan hetiang hian darkar khatah label 80-100 vel an hit thin.
Real-hun bindingplanograms tihfel a nih loh chuan awmzia a nei. Shelf-ah product barcode scan la, label barcode scan la, system chuan binding on the fly a siam. Darkar khatah label 50-70 velin slow zawk la, mahse a chang chuan a tul thin.
Bulk binding a nivia CSV upload hi data thianghlim a awm chuan a rang ber. Upload hmain uluk takin validate rawh.
Taksa lama Mounting a ni
Retail shelving tam zawkah chuan shelf kil lamah C-channel emaw T-channel rail emaw an hmang thin. Profile hman tlanglawn tak takte chuDBR 39 a ni(39mm san zawng, European hypermarket Carrefour ang chi-a awm thin),HL 30 a ni(30mm, North American grocery-a hman tlanglawn tak), leh warehouse retail-a Data Strip zau zawng hrang hrang. Clip chu profile nen match la, rail opening ah tabs dah la, hmalam pan laiin downward pressure pe la, release rawh. Spring tension chuan a hmunah a lock ta a ni. Label hian horizontal sliding a do tih finfiah-customer te hian hengte hi an bump reng ang.
Rail nei lo metal surface tan emaw, refrigerated case-a pawn lam dahna tur emaw tan chuan,magnetic hmanga siam a niglass hmangin 6mm vel a thuk thlengin hna thawk rawh. Hei hi closed refrigerated case te enkawl dan a ni. A chunglam chu isopropyl alcohol hmangin silfai hmasa phawt ang che.
Adhesive hmanga dah a niglass, plastic, emaw thing chungah chuan a bul berah chuan a awm reng. 3M VHB tape hian industrial-strength bonds a siam thin. Removal atan hian heat gun leh adhesive solvent a ngai a, a chunglam a chhiat a rinawm. Adhesive i hman hmain client hian hei hi a hriatthiam hmasak phawt tur a ni.
Installation Sequence a ni
Base station pakhat coverage zone-a label zawng zawng chu a dang pan hmain tihfel vek tur a ni. Hei hian verification nghal theihna a siam a, installer-te chuan install tawh label-a update block thei RF shadow siam a khap bawk.

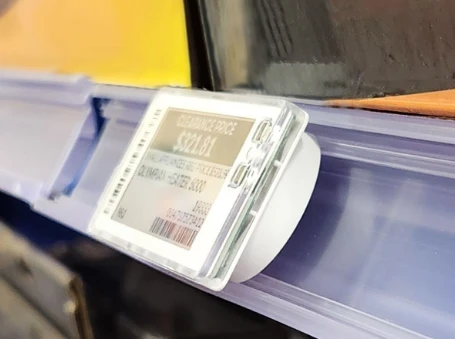

Thil pawimawh hmasa ber tur:end caps leh promotional display hmasa ber (highest visibility, store management chuan hengte hi a en), perimeter department pahnihna (cable run rei ber, infrastructure lama harsatna man hmasa ber), center store gondola pathumna (density sang ber, repetitive ber), specialty areas hnuhnung ber (team-in rhythm an neih hunah refrigeration work tricky tak chu save rawh).
Label 3,000 chuang deployment tan chuan team structure hi a pawimawh hle. Supervisor pakhatin workflow a enkawl a, store management inbiakpawhna a enkawl bawk. Mobile device hmanga scan/binding-a awm mi pahnih. Installer pali chuan physical mounting an ti. Display dikzia nemnghettu verifier pakhat leh thil awmte documenting. He configuration hian a sustain a niDarkar khatah label 400-500 vel a ni. Team tawnhriat ngah tak takte chuan 600+ an hit thei a, mahse chutiang pace chu ngaihtuah chungin budget an siam lo.
System Configuration chungchang
Update Interval hrang hrangte
Hei hi battery life leh responsiveness trade-off a ni.
Minute tlemte danah engkim update vek tura set hi kum 4 ni lovin thla 18 hnua label thlak a nih hma loh chuan a tha hle. Minute 5 danah label update thin chu roughly deplete a niA let 8 zetin a chak zawkdarkar 2 chhunga cycle-a pakhat aia tam. Grocery chain pakhat chuan an produce department pumpui chu minute 5 chhunga update-ah an dah a, a chhan chu thil man a inthlak fo avangin, kum hnih hnuah label 400 thlak a ngai ta a ni.
Thil ngaihtuah dan: hman danDarkar 1-2 inkar vel a niitem tam zawk tan default angin. Move toMinute 15-30 chhung update theih a niproduce emaw competitive grocery items ang chi man inthlak fo thin category te tan. Aggressive te chu reserve rawhMinute 1-5 chhung setting a nipromotion bik neih chhunga SKU bikte tan, blanket policy angin ni lovin.
Channel thlan dan tur
2.4GHz band hian channel 14 a nei a, mahse chu chauh1, 6, leh 11-ah te a awmFCC region-a non-overlapping an ni. WiFi deployment awmsa te survey la, ESL channel te thlang la, overlap a awm lo thei ang. WiFi hi channel 1 leh 6-ah a awm a nih chuan ESL chu 11-ah dah la, enterprise WiFi system tam zawk hi chu client-te IT team-te nena thawhhona siam mai ni lovin, anmahni chhehvela hnathawh mai ni lovin, adjust-coordinate theih a ni.
Transmission power chu medium (10-15 dBm) ah tan tir rawh. Positioning optimization hnua coverage gap a awm reng chuan tihpun chauh tur. A sang zawka kal hian 2.4GHz system dangte pawh a tibuai a, chutah chuan store-a WiFi pawh a tel.

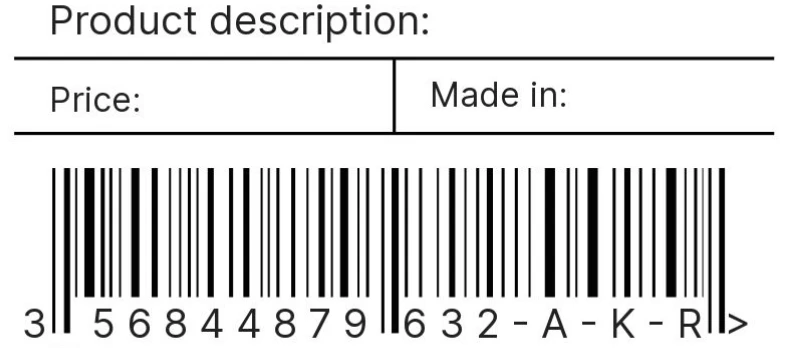

Template Design siam a ni
Price hi element lian ber a nih a ngai-.a tlem berah point 48 font a awmmeter 1 vela hlaa chhiar theih turin. Product hming chu secondary a ni. Scanning rintlak taka hman theih turin barcode size, .a tlem berah 80% tihpun a niEAN-13 tan chuan. EU leh US state tam takah chuan unit man hi dan anga tih a ni a, chuvangin local requirement te chu verify rawh. Promotional flag-te hian rawng pathum nei display-ah hian rawng inang lo tak tak an mamawh a; monochrome label-ah chuan red chu grey angin a render tih hre reng la, chuvangin chutiang chuan design rawh.
Integration tih a ni
Business systems nena inzawmna siam dan kawng hnih.Push model a niERP emaw POS emaw chuan API hmangin price update a thawn a, chu chu inthlak danglamna a awm-real-time sync mahse source system siam danglam a ngai a ni.Pull model a niESL server query chu schedule-implement awlsam zawkah a nei a, mahse price change leh label update inkarah lag a rawn keng tel thung.
Grocery leh electronics man a inthlak fo thin tan chuan push hi integration effort hi a phu hle. Hardware store ang chi stable pricing environment atan chuan pull hian hna a thawk tha hle.
Database direct a inzawmna a nitih pawh hi option-a ni bawk a, chu chu product table-a record hnuhnung ber atanga siam danglam tawhte zawhna zawh theih a ni. Replica nen connect fo la, production ni lovin. ESL query ziak tha lo chuan Black Friday lai khan installation pakhatah POS system a ti tla a.
API call tak tak leh database query te hi REST post leh SQL selects straightforward tak tak a ni. Harsatna chu data quality leh error handling a ni a, technical integration ngei a ni lo.
Test leh Validation tih a ni

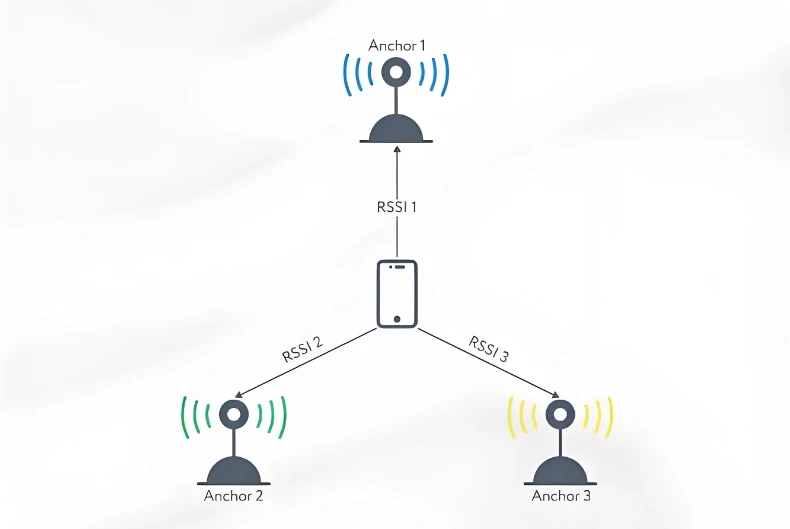

Kal Test a ni
Store chhung zawngah test label dah la, coverage boundary-end of aisle, corner, pillar hnung, refrigeration zone hnaih leh chhunga awmna hmun te pawh dah tel bawk ang che. Test label zawng zawngah a ruala update trigger. Minute 5 chhunga label update loh chuan coverage gap a awm tih a tilang. Hengte hi i kal hmain siamthat hmasa phawt ang che.
Analysis chipchiar zawk atan RF survey tools emaw ESL system-a built-in diagnostics hmangin signal chakna map rawh. Acceptable RSSI chu a ni-70 dBm aia chak zawk. -70 leh -80 inkarah hian dBm hi marginal-a thawk ang mahse a chang chuan a hlawhchham beisei ang. -80 dBm aia chak lo zawk chu pawm theih a ni lo. SES-imagotag hian an diagnostics-ah per-label RSSI an lantir thin. Hanshow hian survey tool hran a mamawh a ni.
Functional Testing tih a ni
Store refresh kimchang- kalpui rawh. Target metrics te chu:First attempt-ah 99% hlawhtlinna a ni, Automatic retry hnuah 99.9% a ni, label 5,000 hnuai lam dawr tan minute 15 chhunga tihfel theih a ni. Heng number te hi hit a nih loh chuan coverage problem, interference problem, hardware chhia emaw a awm a ni. Thresholds a tlin hma chuan sign off suh.
5% random sample la la, a man tarlan te chu source system nen a inmil tih finfiah rawh.Thil inthlauhna awmte chu zero tolerance a ni.Mismatch eng pawh hian binding error emaw integration failure emaw a tilang a ni.
Stress testing atan chuan flash sale simulate la, label 50% chu a rualin update la. System chu a responsive reng tih leh queue process fai taka a awm tih finfiah rawh. Tin, test failover-active update cycle chhunga base station pakhat disconnect la, a nghawng label-te chuan unit kianga awmte hnen atanga coverage an pick up tih nemnghet bawk ang che. Hei hian 20% redundancy hian hna a thawk tak tak tih a nemnghet a ni.
Thil a kalsual hunah
Heng thilte hi a lo chhuak fo thin.
Label-te chhanna nei lo:LED a eng ngai lo a nih chuan battery a activate lo-activation sequence chu redo. LED a eng a mahse display a danglam lo tihna a ni a, label chu a out of range a ni mai thei. Display updates partial emaw garbled emaw chuan RF interference a kawk a-channel hrang hrang enchhin la, inelna nei 2.4GHz sources zawng rawh. Content hlui update lo tur chu management software-ah hian binding problem a ni deuh ber.
Base station chungchangah hian:no power LED tih awmzia chu PoE hian inremna a nei lo tihna a ni-switch port hian PoE+ a support tak tak tih finfiah la, cable termination enfiah rawh. Power mahse software registration awm lo chu network configuration-IP assignment, firewall dan, VLAN settings a ni. Zone pakhata chhiatna thleng ṭhin chuan chu base station aṭanga ramri coverage a awm tih a tilang. Zone pakhata label zawng zawng a ruala a chhiat chuan base station ngei pawh a thi tihna a ni tlangpui.
System-level lama harsatna awmte:updates queueing mahse label a thlen loh chuan server leh base station inkara inbiakpawhna a chhiat thu a tarlang-network path check leh ESL services restart. Source data dik tak awm mahse man dik lo chuan integration sync a chhe tihna a ni-API logs ah dig. Slow response hian database performance a kawk a, a bik takin deployment lian zawkah chuan. Binding bo chuan data corruption-backup atanga restore nghal a nih thu a sawi.
Keeping It Running tih hi a ni
Universal maintenance program a awm lo va, mahse thil thenkhat ngaihthah chuan harsatna a thlen thin.
Nitinmonitoring chu offline label, battery hniam, leh update chhiat te chu system alert hmangin automated a ni tur a ni.Kar tin, label status report enfiah leh offline-a thil awm zawng zawng ni khat aia tam chhui.Thla tin, leivut awmna hmuna label te taksa enfiahna-bakery department te hi an lar hle-and spot-check accuracy.Kum tin, store layout inthlak danglamna hian base station coverage a nghawng em tih enfiah a, battery thlak dan tur ruahmanna siam.
Battery-ah chuan: label te hi user-serviceable a nih loh avangin battery a tlakchham chuan unit pumpui chu thlak a ni. Hlawhchhamna nghak suh. Fleet 10% chuan battery hniam warning an lantir chuan thlak tur order siam rawh. Emergency order man a to zawk a, promotion neih laiin dead label te hian harsatna a siam thin.
Deployment Scale a ni
Deployment tenau telabel 500 hnuai lam tan chuan base station 1-2, ni khatah mi pahnih nen installation neih a ngai a, cloud hosting a ngai bawk. ESL lama team thar tan starter project tha tak tak.
Medium deployment te pawh a awmlabel 500 atanga 3,000 thleng hian base station 3-8, mi 4-6 team nen ni 2-4 chhung, leh project planning tak tak a ngai a ni.
Format lian tak tak store a awm3,000-15,000 label neiin a danglam. Base station 8-25, kar 1-2 chhung, team 8-12 awmna tur ruahmanna siam la, rintlak zawka hman theih turin on-premise server siam rawh. Phased deployment leh dedicated project management a ngai ta a ni.
Enterprise scale a nilabel 15,000 aia tam-flagship, supermarket lian-chuan 25+ base station, kar 2-4 chhung, 15+ person team specialized role nei, leh redundant infrastructure tihna a ni. Hetiang scale-a deployment hmasa ber atan hian experienced help dawng rawh.
Quality Assurance enfiahna tur a ni
A tan hmain:site survey chu thlalak nen zawh fel a ni a, RF interference mapped a ni a, base station awmna hmunte chhinchhiah a ni a, network infrastructure verified a ni a, label quantities chu contingency nen confirm a ni a, team hnenah hriattirna pek a ni a, store management hriattir a ni bawk.
Installation chhung hian:base stations te chu a san zawng dik takah dah a ni a, cables te chu termination hmain test a ni a, base station tinte chu a hnuaia kal hmain online hmanga confirm a ni a, activations te chu verified a ni a, bindings validated a ni a, zone refresh tests te chu 99%+ a pass a, coverage gaps te chu address a ni.
A zawh hnuah:full store refresh minute 15 hnuai lam, 99.9% hlawhtlinna rate, price accuracy audit pass, integration verified, staff training, documentation pek, support contacts confirmed, maintenance schedule siam.
