I hriat hmasak ngai danglamna bulpui

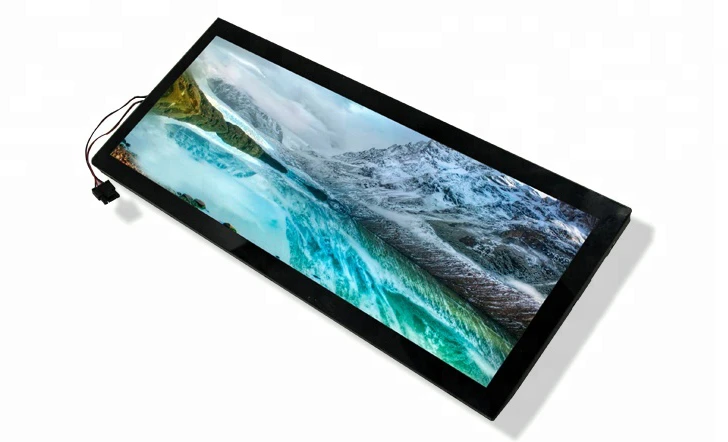

LCD bar screen leh LED bar screen te hian kawng hrang hrangin hna an thawk a. Hei hi i hriatthiam hnu chuan an inkara picking chu a awlsam tawh hle.
LCD bar screens a awm bawkhnung lam atanga êng lo chhuak chu control-in hna thawk rawh. Backlight unit a awm a, liquid crystal molecule te chu an inher leh inher a, light a luh tir emaw, a block emaw a ni. Crystals te ngei pawh hian eng mah an siam lo-an nihna takah chuan color filter nei shutter an ni.
LED bar screens a awm bawkanmahni êng siam rawh. LED te tak te, sen, green leh blue te hian a rualin light leh color a siam chhuak vek a. Pixel tin hi anmahni light source tlemte an ni.
Eng mawi tak a ni
Brightness hian display pakhatin khawiah nge hna a thawh tak tak dawn tih a rel a ni. Hei hi kan teh a ninits (cd/m2) a ni., leh installation trick fing tak tak hmanga i thawh theih loh tur hard limits a awm bawk.

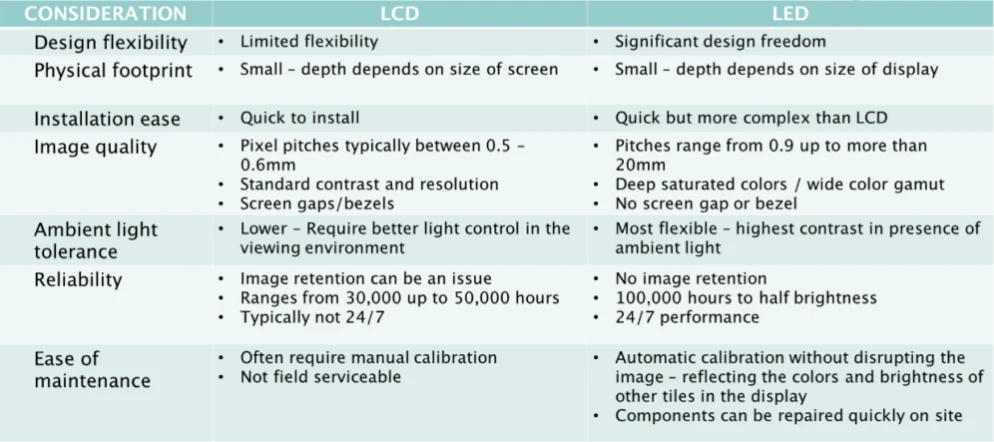

Controlled lighting nei indoor retail tan chuan a tlem berah i mamawh a ni350 nits a ni. Khawi emaw laiah chuan500-700 inkar a nihna a thawk tha zawk. Chu display chu window bulah dah la, rang takin i en ta a ni700 aia tlem lo a ni, nen1000-1500him zawka awm. Semi-pawn lam hmun indirect sun nei chuan chu chu a nawr a2000-3500 nits thleng a ni. Ni êng direct-a pawn lama full outdoor awm em?5000 nits a tlem berah a ni, leh installer tam zawk chuan an rawt bawk6000-8000.
LCD hian nits 2500 vel a top out, leh specialized high-brightness model chauhvin an thleng thei bawk. Chu unit te chu a thuk zawk-40-60% velin a thuk zawk mai thei-a kang chhuak rang zawk bawk.
LED hi 800 atanga tan niin 10,000 nits a pel.
Full outdoor tih awmzia chu LED tihna a ni.

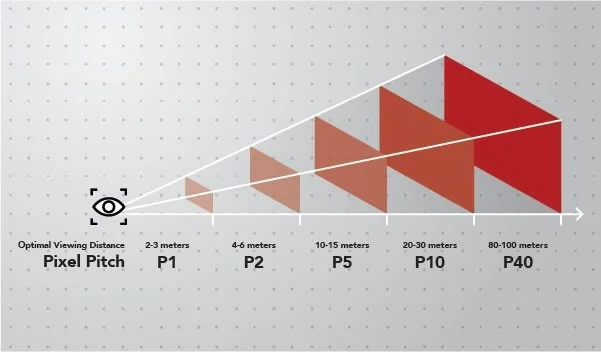

Pixel Density leh En theihna hmun
LCD bar screen-ah hian factory atanga pixel count fixed a awm a. LCD bar screen inch 37-a sei chu 1920×540-ah la rawh. Consistent i hmu chho zel a60+ PPI tih a nikhawi hmunah pawh ding mah la. Chu chu meter chanve-ah chuan sharp a ni a, metre nga-ah chuan a tul lo.
LED bar screens hmang hian pixel density i thlang thei apixel pitch a ni. Maths chu a awlsam hle: i pixel pitch chu millimeter-in la la, 1.0 atanga 1.5-in multiply la, i viewing distance tha ber chu metre-in i hmu ang.
P4.0chu project tam zawkin an tlakna hmun a ni{0}}a huam vek a niMetre 4-6 vela hlaah a thlum bermall installation, airport signage, leh retail storefront window-a thawk thin. I mamawh chuan tight zawkin kal rawh.P2.0meter 2-3 inkar a handle a, roughly double i pe a ni.P1.2LED wall lian tak atanga mi ding thei dinhmun tlemte tan chuan a awm a ni. A man 5x a ni.
Entuten metre 2 aia hlaa an hnaih chuan LCD hian awmzia a neileh detailed text emaw graphics emaw i entir bawk.LED hian en theihna hlat zawng meter 2.5 aia tam a nih chuan a chakleh fine print aiin visual impact a pawimawh zawk.

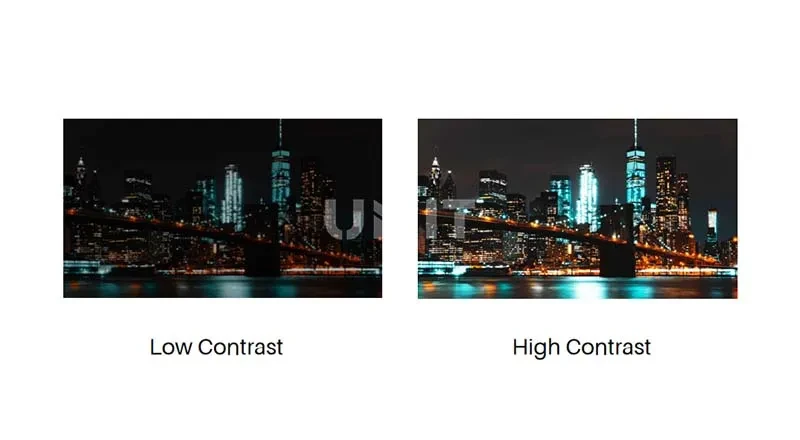

Contrast Ratio: Engvangin nge LED hian Dark Background-ah hnehna a chang
Contrast ratio hian display pakhatin a siam chhuah theih, var eng ber leh dum dum ber inthlauhna a teh a ni.
Hetah hian LCD hian structural problem a nei a. Backlight hian panel pumpuiah a kal vek a. Black i lantir duh chuan chu pixels chuan light chu a block vek thei lo. Black dik tak ai chuan dark grey i hmu zawk. IPS panels hian a tlangpuiin an tihlawhtling thin1000:1 atanga 1500:1 thleng a niin ep. VA panels te hian an ti tha zawk3000:1 atanga 5000:1 thleng a ni.
LED pixel tin hi a off vek thei. No current tih awmzia chu eng lo tihna a ni a, chu chu a awmzia a niactual black. Standard SMD LED panels te chu a rawn hit a5000:1 atanga 8000:1 thleng a ni. Higher-end COB LED hian a thleng thei10,000:1 emaw, 100,000:1 emaw pawh a ni thei.
I content hian dark background emaw high-contrast logo emaw a hmang a nih chuan hei hi a pawimawh. Light background-a text atan chuan mi tam zawk chuan an hre lo ang.
Color Performance a ni
LCD bar screen hian a cover tlangpuisRGB atanga 72-100% vel a ni, hnathawh in8-bit color depth (color maktaduai 16.7) a ni., leh tihhlawhtlin a niΔE rawng dikna chu 2-5 inkar a ni. Consistency chu an chakna a ni-backlight chu a diffuse vek a, chuvangin calibration tel lovin panel pumpuiah colors a inmil vek a ni.
LED hian gamut zau zawk a pe a ni(90-140% sRGB) a ni.leh rawng thuk zawk a awm bawk(10-16 bit, rawng maktaduai khat chuang). Out-of-the-box accuracy a chhe zawk a, ΔE hian 3-6 a run a, module hrang hranga color inmil theihna tur chuan hna a ngai a ni. LED install nasat apiangah colorimeter-based calibration a tel a ni.
Refresh Rate leh Camera Capture te a awm bawk
Miten i display an thlalak emaw, an film emaw hunah refresh rate hi ngaihtuahawm tak a ni ta. Tunah chuan retail leh public space-ah pawh hetiang hi a thleng fo tawh a ni.
LCD chu a run at60Hz standard a ni, premium model-ah 120Hz a awm bawk. Hei hi mihring mit tan a tha a mahse mi pakhatin a phone hmanga video a shoot hian banding a siam thei. Commercial LED panel hi a tlangpuiin a kal thin1920Hz atanga 3840Hz thleng a ni, chu chuan smartphone footage-a lang scan-line artifacts te chu a ti bo vek a ni.
Hei hi nangmah ngeiin test duh em?I phone slow-motion mode hmangin display chu 240fps-in record rawh. Horizontal black bars scrolling through the image tih hian refresh rate a sang tawk lo tihna a ni.
Panel Technology hmanga siam a ni
LCD Panel chi hrang hrang

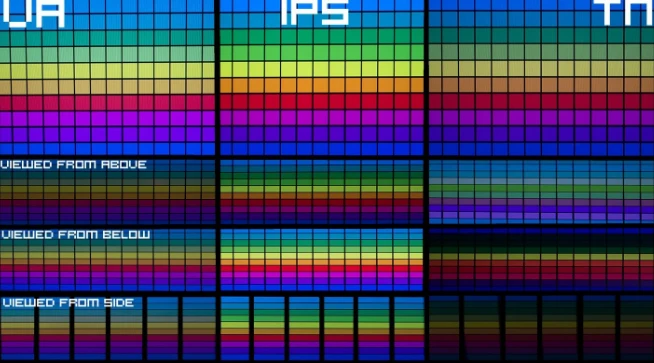

IPS (In-Plane inthlak danglamna) .panels te hian a pe che a ni178℃/178℃atanga thlir theihna a nicolor accuracy tha tak nen. Response time hi 8-14ms a kal a, black level pawh a moderate-mihring dum dik tak aiin grayish black i hmu ang. Hengte hian angle hrang hrang atanga thlir shelf-edge display leh color accuracy pawimawhna menu board te tan a thawk tha hle.
VA (Vertical Alignment) a ni.panels a pe a178℃/160℃atanga thlir theihna a ni. Vertical performance hi extreme angle-ah a tlahniam fo thin. Color accuracy a tha a, response time pawh 4-8ms ah a rang zawk a, black level hian IPS a phak lo. Hengte hi video-heavy content leh dark color scheme hmanga brand hrang hrangte nen a inmil hle.
ADS/AFFS chi hrang hrangchu industrial-grade option a ni a, temperature tolerance tihzauh a ni-30℃atanga +80℃thleng. Transportation emaw extreme environment emaw tan chauh premium man a ni.
LED Packaging Technology hmanga siam chhuah a ni
Terminology chu a buaithlak nghal vat thin.

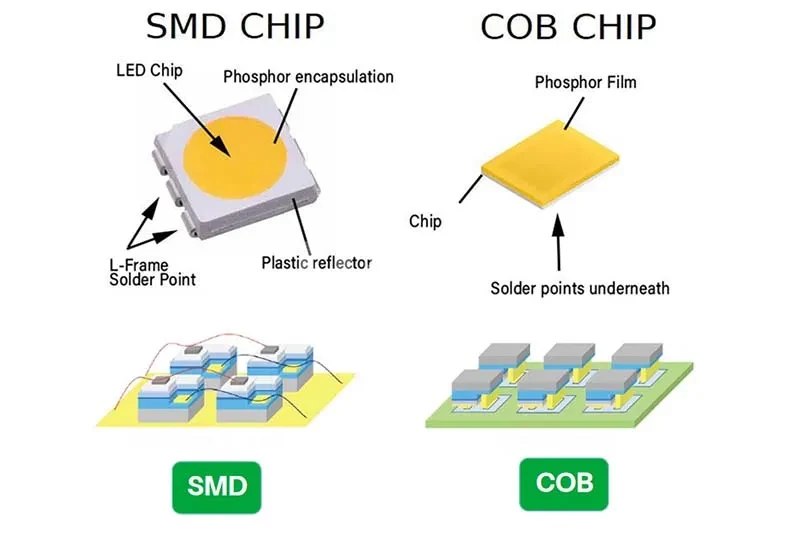

SMD (Surface-Thil dahna hmanrua) .indoor leh semi{0}}outdoor installation-ah a thunun. LED chip pathum (red, green, blue) chu bracket pakhatah dahin resin-ah a inkhuh lut a ni. Pixel pitch hi P1.0 atanga P10 thleng a ni.
Vulnerability te hi a tak tak a ni: LED surface langsar tak takte chu taksa lamah a chhe thei a, resin boundary-ah moisture a seep lut thei a, direct finger contact hian components te chu a dislodge thei bawk. Miten display an khawih theihna tur retail floor leh transit station tan chuan hei hi a pawimawh hle.
COB (Chip-chuan-Board-ah) a awm a.PCB substrate-ah LED chips direct-in a mount a, chutah chuan engkim chu uniform protective layer hmangin a khuh vek a ni. Module chung zawng zawng chu a tawp a, a hrual leh chhunzawm zel-physical durability tha zawk, moisture resistance, leh pixels inkara light-absorbing coating atanga contrast tha zawk. Costs a kal zel30-50% in a sang zawkSMD tlukpui aiin a tam zawk.
GOB (Glue-chu{1}}Board-ah a awm) .chu compromise option a ni: standard SMD technology hmanga assembly zawhah epoxy coating dah belh a ni. COB-like venhimna man tlawm zawk. UV exposure rei tak nen chuan brightness tlahniam tlem (5-10%) leh yellowing awm thei i hmu ang.

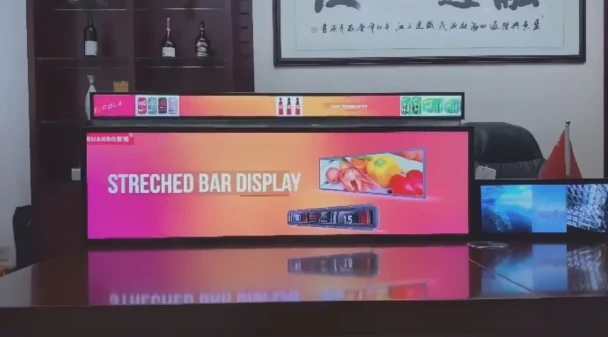

Native leh Cut Panel te an ni
Bar screen siamtute hian an panel hi kawng hnih in an hmu a, a danglamna hi a lei duh tam zawkin an hriat aiin a pawimawh zawk.
Native Bar Panel te a awm bawk
Hengte hi ultra-wide aspect ratio atana siam bik siamna mask hmanga siam a ni. Dimension te hi a tir atang khan tumruh tak a ni. Supplier te chuan an duhBOE, AUO, Innolux, leh CSOT te an nistretched-format product line hrang hrang siam.
I hmuh tur chu: backlight distribution pawh edge thlengin, full structural integrity with standard glass thickness, perimeter pumpui vel consistent seal, leh standard resolution pattern ang chi1920×158, 1920×360, emaw 1920×540 emaw a ni.
Panel Cut leh Resized te
Hengte hi standard 16:9 panel atanga tan a ni a, siam zawhah physically cut to bar dimensions a ni. 1920×1080 panel chu 1920×270 strip tam tak a lo ni thei.
Cutting hian glass layer inkar seal a tichhia-.a sir lamah light a leak thin. Glass integrity chu cut line-ah a tlahniam a, hei hian shipping leh installation laiin a chhe tam zawk tihna a ni. Original backlight hi full panel atan design a nih avangin partial panels te hian uneven illumination an hmu thin. Tin, chu seal compromised te chuan moisture a luh tir a, hun kal zelah liquid crystal degradation a ti chak hle bawk.
Spotting cut panels te chu:non-standard vertical resolutions ang chi zawng rawh158, 203, emaw 270 pixels emaw a ni. Panel specification sheet siamtu part number tak tak awmna dil rawh. Real native panel-te chuan supplier catalog-ah model number an document a.
Cut panels hi 30-50% velin a man tlawm zawkin an tlan thin.Discount hi a awm a, a chhan chu quality a hniam tak zet a ni.
A hmanna dik tak

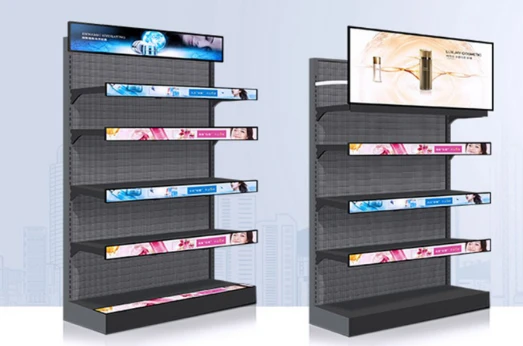

Retail Shelf-Edge a lantir thin
Indoor lighting controlled i nei a, mi ding hnai tak tak (a chang chuan product an hmuh laiin meter hnuai lam) i nei a, content tam zawk chu text leh pricing a ni. Plus heng thil dozens emaw za tam tak emaw i rolling out mai thei.
Hetah hian LCD hian hnehna a chang a, a hnaih bik lo.Shelf edge atanga metre 4 vela hlaah tumah an ding lo. I viewers te chu an inhnaih hle a, chu chu LCD-in a pek pixel density chu i mamawh tak zet tihna a ni. LCD hian subpixel rendering a handle dan avang hian text hi a crisp hmel hle. Tin, unit 2 aiah 200 i lei dawn chuan chu LCD leh LED man inthlauhna chu a pung tak zet a ni.
Thin profile hian a pui bawk. Shelf-edge mounting rail tam zawk hi LCD dimension ngaihtuah chunga design a nih avangin hardware i do lo.
Thil pakhat chu a chhungah500-700 nit range ah IPS panel a awm bawkhna a thawk tha hle. VA hian mi zawng zawngin kawng khat atanga an hnaih chuan hna a thawk a, mahse chutiang chu miten an thil lei dan a ni tlem hle. Native panels i hmuh ngei ngei tur a ni a, size-wise i en tlangpui thin23-42 inch inkar a ni.
Transportation chungchang hriattirna a lantir
Rel, bus, airport te pawh a awm bawk. Thil engemaw a chhe hma loh chuan miten an ngaihtuah loh danah boruak a khauh hle. Vibration awm reng. Consumer electronics tihlum thei tur temperature inthlak danglam. Tin, heng thilte hi ni khatah darkar 18+ a kal thin.
Certification mamawhna hian a bul berah chuan he thutlukna hi i tan a siam a ni.Rail industry hian EN50155 a nei a, automotive hian E-Mark certification a mamawh a, LCD atana approval pathways pawh puitling leh document tha tak-documented a ni. Transportation atan LED certification pek a ni em? A la man chhuak zel.
Paperwork tih loh chu industrial LCD mounting system hian kum sawm tam tak chhung chu vibration resistance a nei tih finfiah a ni. Lirthei chhunga display i dah hian a rit pawh a pawimawh hle. Tin, mi an thut emaw, an ding emaw a nih avangin LCD resolution advantage i tichhe lo.
Industrial-rated IPS panels a tlem berah handle thei tur i duh ang-20℃atanga +60℃thleng. Vibration specs a lang tur a ni1G chhunzawm zel tur tolerance a tlem ber, a tha ber chu 3G shock resistance a ni. Brightness vel a awm700-1000 nits vel a niwindow atanga glare rawn lang chu a handle thin.

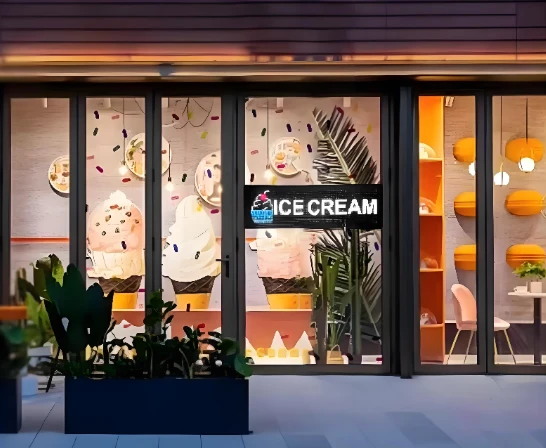

Pawn lama Storefront leh Window-a Display te a awm
Ni eng hian engkim a tidanglam vek. Kan inbia a100,000 lux a nini thianghlim takah i display hit. LCD taksa lamah chuan hetah hian a inel thei lo.
LED hi pawn lama option dik tak awmchhun a ni.Ni êng direct do tur chuan nits 5000-8000 i mamawh a, chu chu LCD-in a pek theih thil a ni lo chauh a ni. Weather resistance pawh a pawimawh since i duh dawn a niIP65 emaw a aia tha zawk emaw a nihmalam sir ah a awm. Viewing distance rei zawk (kawngpui sir lama mi, car tlan pelh) chuan engtin pawhin LCD pixel density chu i overpaying tihna a ni.
Kal ve rawhP3-P6 pixel pitch a nii typical viewer dinna hlat zawng a zirin. I hmu tih chian rawh3840Hz a refresh a nichuvangin social media-ah thlalak a la tha hle. Operating temperature range hian i local climate-in a tihbuai apiang chu a handle tur a ni.

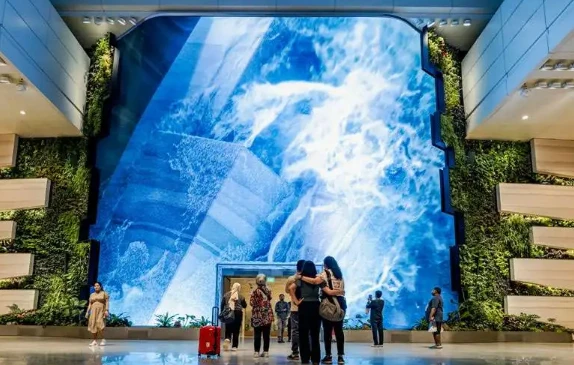

Indoor Installation lian tak tak-Scale
Mall, airport, convention center, corporate lobby-ah te pawh a awm a. Hmun lian tak tak, ceiling sang tak leh meter 20 vela hlaa awm thei tur entu te.
Hetah hian LCD thattu chu seamless factor hi a ni.LCD panel lian ber i hmuh tur chu inches 88 vel a ni. Rei zawk kal i duh em? Panel i tiling khawm a, chu bezels chu a lang thei. Designer te chuan bezels te hi aesthetic ah hian dah tel an tum thin.
LED module te hi a lock khawm tha hle.Meter 30-a thui continuous display i duh em? LED hian a handle a ni. Curved installation chu column pakhat vel a ni em? LED hian a handle a ni. Heng space-a viewing distance te hi P2.5-P4 pixel pitch nen a inmil hle a, engti kawng pawhin LED sweet spot a ni.
Premium installation atan chuanP2.5hna a thawk tha hle. Standard commercial hnathawh hian a ti tha hleP3-P4. Brightness hi space ah a innghat a mahse a tlangpuiin800-1500 nits vel a niindoor scenario tam zawk a huam vek. Definitely get front-access module design a chhan chu a tawpah chuan mi pakhatin he thil hi service a mamawh dawn a, display hnung lam access tur chuan mall section pakhat khar a ngaih chhan pawh sawifiah i duh lo.

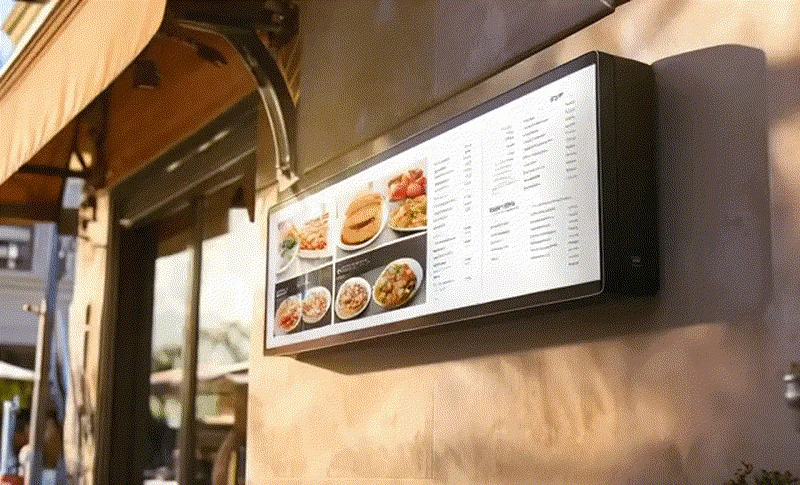

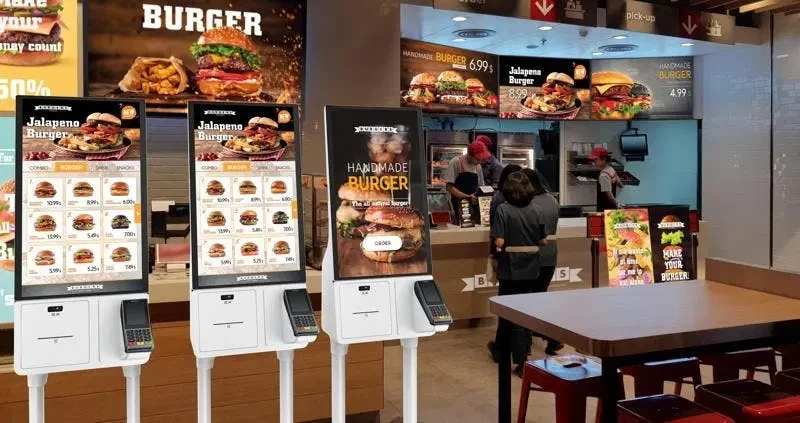

Restaurant leh QSR Menu Board te a awm bawk
Hetah hian budget a pawimawh. Restaurant margin a tlem a, neitute chuan hmanrua an lei apiang an enfiah vek a ni.
A thupui ber chu text a ni a, a chang chuan ei tur thlalak a awm bawk.LCD hian text a render tha hle.Viewing distance chu chu meter 1.5-4 range a ni tlangpui a, chutah chuan technology pakhat zawk hian technically a thawk tha hle a, mahse LCD lei leh hman man a tlem hle thung.
Thil pakhat ngaihtuah tur chu: kitchen-ah hian grease leh steam a siam chhuak thin. Dining area-ah pawh chu thil chu a migrate thin. Display chungah hian protective glazing chi khat i duh a. Tempered glass overlay hi standard a ni. Self-service ordering i tih chuan, .PCAP touch theihna a nia man ah 15-20% vel a belhchhah a mahse functionality thar a hawng thung.
Brightness vel a awm500-700 nits vel a nirestaurant lighting pangngai a handle thin.IP54 chu hmalam a niduhthlan tur ni lovin, tih ngei ngei tur anga ngaih tur a ni.
Hun rei tak-Term Cost ngaihtuah tur
Upfront cost hi a bul tanna chauh a ni. A hnuaia tarlan te hi a rough comparison a ni. Electric rate, hman dan, leh eng emaw a chhe leh chhe loh a zirin result a inang lo ang.
LCD bar screen (37-inch tlukpui) atan chuan:acquisition a kal zel a$400, nitin darkar 12 chhunga power hman man hi rates a zirin kum khatah $8 vel a ni mai thei, maintenance atan kum khatah $40 vel dah a ni a, kum 4 vel a backlight thlak hian $150 vel a belh leh bawk.Kum nga chhungin $800 vel a ni.
P2.5-a display area inang LED bar screen atan chuan:acquisition a tlan kual vel a$900, power man a to deuh a, kum khatah $13 vel pawh a ni mai thei, chutiang bawka condition hnuaiah. LED hi a chhe thei lo zawk avangin maintenance reserve a hniam thei. Module thlak hi a tlangpuiin kum nga chhungin quality tha tak lei a nih chuan a ngai lo.Khawi emaw laiah chuan $1,050-1,100 vel a ni.
LED hian kum nga chhungin LCD aiin 35% velin a tlan tam zawk a niindoor scenario pangngaiah chuan.
Math hi dinhmun hrang hrangah a inthlak thin. Deployment rei zawk chuan LED-LCD backlights chu kum 5 hnuah a tlahniam chak zawk a, LED erawh chuan kum 8 chhungin 70%+ brightness a vawng reng thung.Pawn lama installation chuan high-brightness LCD model te chu $800+ ah a nawr a, chutih rualin longevity chhe zawk a pe a, hei hian LED cost-equivalent emaw a man tlawm zawk emaw a siam a ni. Seamless installation lian tak takah chuan LCD nena bezel alignment complex tak a ngai a, scale-ah chuan LED assembly awlsam zawk hian labour cost a tihtlem tawk a, gap chu a khar thei a ni.
Lei Hun A Dil Tur
LCD Bar Screens te tan chuan
Panel atang ngeiin tan la rawh. I hriat duh a nituin nge siam tak tak (BOE, AUO, Innolux) .leh model number bik a awm bawk. Hei hi a pawimawh a, a chhan chu standard display atanga cut down thil ai chuan native panel i hmuh tih i verify dan a ni. Cut panel hi a man tlawm zawk chhan a awm.
Brightness specs hi a dik lo thei hle. Thil siamtu thenkhat chuan panel lai takah a eng berna hmunah an teh a, thenkhat chuan a chung zawng zawngah average an pe che a ni.Eng method nge an hman tih zawt rawh.700-nit center tehna chu a sir lamah nit 550 chauh a ni thei.
Get thebacklight chi hrang hrang a awmin writing since edge-lit leh direct-lit te hian uniformity characteristic hrang hrang an nei a.A rawng hrang hrangsRGB percentage emaw standard dang i verify tak tak theih angin tarlan tur a ni. "Good color reproduction" tih hi chhanna atan chauh pawm suh.
Operational stuff pawh a pawimawh hle:temperature range, MTBF chhinchhiah dan a ni, eng nge warranty hian a huam tak tak (panel chauh? backlight? power supply?). Tin, i installation hardware i design hmain mounting interface dimensions i hriat hmasak phawt bawk ang che.
LED Bar Screens te tan chuan
LED quality hi a inang lo hle a, a...chip siamtu a nitih hi i clue hmasa ber a ni.Nationstar, Kinglight, Cree, Nichia te an nitih hming i hmuh duhte an ni. Generic "high-quality LED" tih hian engmah a kawk lo.
Pixel pitch-a spec sheet hi ring suh.Factory inspection i tih dawn chuan caliper keng la.
Refresh rate hi i verify a awlsam hle. I phone chu la chhuak la, 240fps-a slow-motion video-ah switch la, display chu record rawh. Black bars scroll through the image tih hian refresh rate hi an sawi ang kha a ni lo tihna a ni. Hei hian second 30 a awh a, client-te chu thil lei ṭha lo aṭangin a chhanhim a ni.
Brightness tehna hi thil siamtute’n thil siam chhuahna hmun dang a ni. Sum serious tak i hmang a nih chuan .inspection-ah calibrated meter rawn keng rawh. Display 6000 nits-a rated, 4500 pe thei tak tak chuan ni êng direct-ah a cut dawn lo.
Thil chiang lo deuh thenkhat nail down tur: Israwng (color calibration) a nidelivery-ah telh a ni em, a nih loh leh chu chu extra charge a ni em? Eng nge niflatness tolerance a nimodule inkar ah? (Visible seams hi module flush tha taka thu lo atanga lo chhuak a ni fo thin.) Eng chen nge an guarantee angspare module awm theihna tur a ni? Kum nga aia tlem lo, a chhan chu display siam that theih loh chu liability a nih vang a ni. Tin, a dawng bawkpixel thi tawh policy a ninumber tak tak hmanga ziakin, "industry standard acceptable rate" chauh ni lovin.
Chuti a nih chuan Eng Nge?
LCD hian a thawk tha zawk a:meter 1.5 hnuai lama close viewing, text-heavy content, standard indoor lighting, budget-conscious project, installation zawng zawng meter 3 hnuai lam, touch-enabled application, leh vibration ngaihtuahna nei transportation environment te.
LED hian awmzia a nei zawk:meter 3 aia hlaa en theihna, video-dominant content, high ambient light environment, semi-outdoor emaw outdoor application eng pawh, premium brand presentation, seamless run meter 5 aia tam, kum 5 aia rei 24/7 operation ruahman, leh curved emaw architecturally creative installation te.
Standard indoor lighting hmanga meter 1.5-3 viewing range hi kawng hnih a kal thei. Thil dang pawh han en teh. Project bik atan eng advantage nge pawimawh tih chhiar rawh.Even hnaih a nih chuan LCD hian cost-ah hnehna a chang tlangpuiseamless sei zawng, pawn lam êng, video impact bik a mamawh loh chuan.
