ESL Dimensions: Number te hi a taka hman danah eng ang nge a nih
Electronic shelf sir lam label te a awm bawkscreen diagonal hmanga size an ni a, monitor leh phone-a hman thin convention ang chiah kha a ni. Legoyo hian a range hi compact end-ah inches 1.53 aṭanga promotional format lian zawk tan inches 9.7 thleng a ni.
Retailer tam zawkin an duh hmasak ber figure chutaksa thuk zawng- label chu shelf hmai atanga pawn lam atanga eng chen nge a chhuah. Range pumpuiah dimension hrang hrang tarlan a ni a, 4.2" model atana Legoyo-in a verified spec pawh a tel:
| Screen Size a ni | Label zau zawng | Label San zawng a awm | Taksa Thuk zawng | A hman dan tlangpui |
|---|---|---|---|---|
| 1.53" | ~48 mm a ni | ~33 mm a ni | 8–10 mm a ni | Damdawi dawr, cosmetics, shelf te tak te |
| 2.13" | ~72 mm a ni | ~38 mm a ni | 8–10 mm a ni | High-density grocery, thil chi hrang hrang awmna hmun |
| 2.66" | ~84 mm a ni | ~43 mm a ni | 9–11 mm a ni | Convenience store-ah te, click & collect theih a ni |
| 4.2" ✓ | 97.4 mm a ni | 88.9 mm a ni | 10–12 mm a ni | Supermarket standard, thil dahkhawmna hmun a ni |
| 5.8" | ~155 mm a ni | ~73 mm a ni | 11–13 mm a ni | Mid-format grocery, promotional runs te pawh a awm bawk |
| 9.7" | ~235 mm a ni | ~160 mm a ni | 13–16 mm a ni | Electronics, wine, specialty retail te pawh a awm bawk |
✓=chu Legoyo-a hnen atangin a nemnghet4.2 inch ESL spec sheet a ni. Figure dangte hi screen size tinah e-ink ESL siamna atana entir a ni a; order tihfel hmain product page hrang hrang verify hmasa phawt ang che.
8–16 mm thuk chu a tlangpuiin standard credit card laid flat - thickness ang vel a ni a, eng gondola shelf tan pawh awmze nei taka daltu a ni lo. A number te chutian dik loh hunah harsatna siam chu label width leh label height a ni a, depth a ni lo. Chumi chungchang chu a hnuaiah hian a tam zawk.

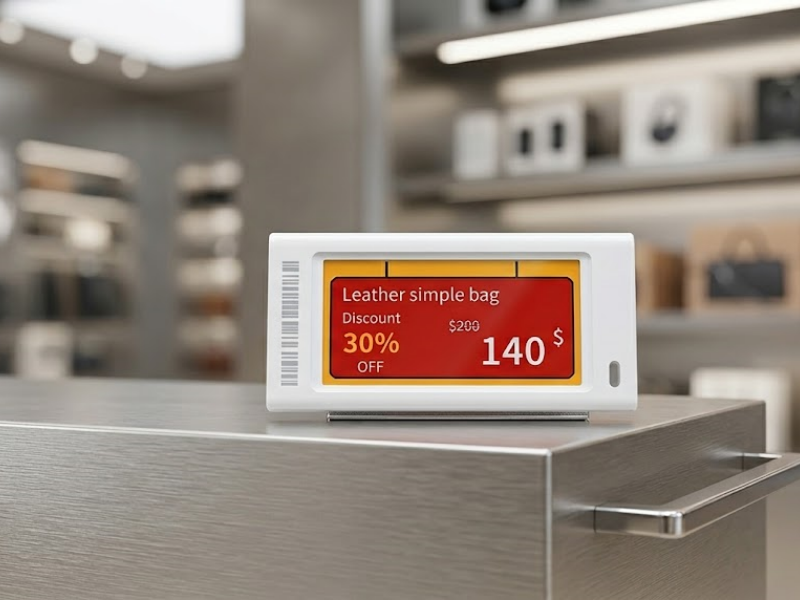

Engtin Nge ESL te hi I Paper Label Setup hman mek nen an khaikhin?
Vendor-te hnen atanga chhanna standard chu ESL-te hian "almost no space" - dik takin an la a, mahse tunlaia i neih tawh nen khaikhin chuan clearance i hlawh chhuak dawn nge i hloh dawn tih hriat i tum a nih chuan a pui lo.
Paper label fixture pangngaiah chuan plastic snap-in channel (10–14 mm thuk), paper insert ngei a awm a, store tam takah chuan promotional clip, shelf talker, emaw sign holder emaw a awm a, chu chuan a chungah 5–20 mm dang a belh leh a ni. Shelf edge-a paper label strip fully populated chu a rawn chhuak tlangpui12–28 mm a ni, accessories engzat nge attached tih a zirin.
Legoyo-a 4.2" ESL at 10–12 mm chu standard shelf rail tam zawkah direct-in a clip a. Paper channel chu a hmunah a awm reng a, ESL chu a chungah a mount a, a nih loh leh a pum puiin - engti kawng pawhin a paih chhuak vek a, a chhuak protrusion chu a thlak danglamna nen a inang emaw, a thuk zawk emaw a ni.
Operational danglamna chipchiar taka side-by-side tehkhin nan,Shelby Report-in retail technology lama a coverage a ni
switch zawh tawh store atanga thlirna tangkai tak a pe. Kanmahni kaihhruaina turESL leh paper label te nen an inhmachhawn dawn a nioperational comparison kimchang a huam vek a ni.
I Label Size I thlan hmaa i enfiah hmasak tur thil pathum
ESL project-a shelf-space issue tam zawk hi order hmaa check pathum zinga pakhat skip atanga lo chhuak a ni.
1. Label zau zawng vs. I Product Facing Width
Taksa thuk hi a buaithlak lo hle. Lu na tak tak thlentu dimension chulabel body width chu product-in a ruat shelf slot nena khaikhin a ni. Product pakhat chu 60 mm slot-ah a thut a, 97.4 mm body nei label i order chuan a kianga slot chu i overlap emaw, i planogram atanga hmalam position pakhat i hloh emaw a ni. Mid-deployment pawh hi pawm theih a ni lo.
Size thlan i tihfel hmain i dawr chhunga product category tawi ber chu teh la, i label width thlan chu chu slot chhungah a awm tih nemnghet rawh. Hei hian tape measure hmangin minute 30 a la a, full-store ESL rollout-a sizing tihsual tam ber pakhat chu a veng thei a ni.
2. Label San zawng vs. Product Hmel
Label san zawng hian product hmalam chu shelf edge hnuaiah engzat nge a thim tih a hril a ni. Legoyo-a 2.13" label 38 mm-a sang hian standard beverage bottle aṭanga a tlem ber a block a ni. 160 mm-a 9.7" label hian a pawimawh zawk a khuh a ni.
Bottom-shelf position-ah chuan customer-te’n label hnaih-a chhiar turin an khur a, a te zawk chuan a thawk tha zawk - a thuk vang ni lovin, label compact, layout thianghlim nei chu 30 cm atanga parse a awlsam zawk avangin, a lian zawk chu text-a khat aiin a awlsam zawk a ni. Label size chu customer-te’n chu shelf san zawng nena taksa lama an inbiak dan nen khaikhin la, screen-size convention chauh ni lovin.
3. I Label Channel awmsaah eng nge thleng
Hei hi zawhna first-time buyers te hian an neih fo thin mahse direct a zawh tlem ber chu a ni:ESLs ka install hmain ka paper label strip awm mek te hi ka paih chhuah a ngai em?A tam zawkah chuan, ni lo. Legoyo-a ESL te hi drop-in installation atana siam niin zero shelf modification - an hmang a, clip-in, magnetic, peg hook, leh adhesive mount te hmangin rail system awm tawhah emaw, a bulah emaw hna an thawk a ni. Installation team te hian standard gondola shelving-ah shift khatah 500+ label an fit tlangpui. Rail profile hlui zawk emaw -standard ni lo emaw a awmna hmunah chuan adapter clip hian structural work tel lovin compatibility a resolve thin. Chumistep-by-step ESL installation kaihhruainascenario pahnih hi a huam vek a ni.
Store Environment hrang hranga Size rawtna siam
Grocery Supermarket-ah te pawh a awm bawk
2.13"–4.2" range hian standard grocery shelving tam zawk a huam a ni. High-SKU sections narrow product facings nei tan chuan - condiments, spices, snacks, sauces - 2.13" emaw 2.66" emaw hian label width chu slot awmsa chhungah nuam takin a dah a ni. Boxed goods emaw beverages ang chi product zau zawk tan chuan, a man ruala QR code emaw promotional callout emaw lantir a pawimawhna hmunah chuan, 4.2" hi global retail standard a ni a, a chhan tha tak a awm: gondola rail profile zau ber nen a inmil a, screen real estate leh shelf density inkara balance dik tak a siam bawk. See how this plays out across real store formats in Legoyo's overview of
grocery store-a ESL deployment te a awm bawk.Convenience Store hrang hrangah te
SKU density hi supermarket aiin a hniam zawk a, mahse product pakhatah shelf space a tight zawk thung. 2.66" hian C-store gondola configuration tam zawk tan a thawk tha hle. Thil pakhat mak tih hmasak ber-time convenience store deployer-te: store footprint a tlem avangin, wireless access point pakhat hian sales floor pumpui a huam vek a, chuvangin infrastructure planning chu a tlem hle. Ceiling mounting hian hardware zawng zawng chu shelf atanga off vek a ni. Chu chu engtin nge a thawh tih chu ESL wireless standard i thlan danah a innghat - kan tehkhin danBluetooth leh Wi-Fi leh Sub-GHz ESL system tecoverage leh battery-life trade-offs chungchang a sawifiah.
Damdawi dawr hrang hrangah
Pharmacy environment-a critical variable chu label width a ni a, depth a ni lo. Pharmacy shelf-ah hian blister pack, tube, leh unit-dose box - a tam zawk chu a tawi hle. Technically fine in depth label chuan a kianga SKU slot-a thisen a luh chuan visual mess a la siam tho ang a, hei hian planogram-controlled OTC section-ah a tibuai hle. 1.53"–2.13" range hi high-density pharmacy shelving atan chuan standard a ni a; 2.66" hian OTC emaw medical device section zau zawk-format tan a thawk a. Taksa zau zawng enfiah rawhLegoyo hian retail ESL catalog a siam a nii order i confirm hmain.
Specialty leh Electronics Retail te a ni
Shelf zau tak tak, SKU tlem zawk, leh specification detail-in thutlukna siamna a nghawngna product te. 5.8"–9.7" range hian hetah hian a footprint lian zawk a hlawh chhuak a, warranty terms, product specs, leh QR codes te chu price - content nen a lantir a, chu chuan considered purchases te chu genuinely moves a ni. Electronics leh home goods retail-a common product facings zau zawk hian label width hi heng format-ah hian planogram inhnialna a nei tlem hle.
Refrigerated leh Frozen-a dah a ni
Standard e-ink ESL te hi 0℃atanga 40℃thlengin an thawk thin . Refrigerated leh frozen case-ah chuan tumruh-built low-temperature model −20℃emaw a aia hniam emawa rate a ngai a ni. Hengte hi Legoyo standard size range tam zawkah a awm a, clip inang-in mounting approach - hmangin modified shelving a ngai lo. Cold-chain section order hmain operating temperature specification kha confirm hmasa phawt ang che.
Space lama harsatna tak tak siamtu Sizing decision pali
Label body width check lovin screen size hmanga order theih
Screen size hi display diagonal measurement a ni a, label body zau zawng a ni lo. Aspect ratio hrang hrang hian 5.8" label (155 mm a zau) leh 4.2" label (97.4 mm a zau) te hian an pahnih hian standard size ni mahse an taksa zau zawng a inang lo hle tihna a ni. Label chu khaikhin fo ang chetaksa zau zawngi product tawi ber hmachhawn hmaa bulk order - i siam hmaa screen diagonal ni lovin.
Shelf rail zawng zawng hian standard ESL clips an pawm vek ang
Kum 15 kalta chhunga gondola shelving install tam zawk hi ESL clip-a standard snap- nen a inmil a ni. Exceptions te chu ESL hman a nih hmaa fixture hlui zawk, refrigerated cabinet kawngkhar, leh warehouse pallet racking thenkhat te an ni. Store-wide rollout hmain i rail profile bik ah physical sample test hmasa phawt ang che. Installation ni-a deployment-stopping problem a awm loh nan minute 10-a check a ni - hei hi Legoyo-in bulk commitment hmaa sample order hmasak a rawt chhan a ni.
Shelf position hnuai lam-format label lian tak tak hman
Bottom shelf-a issue chu depth - a ni lo a, readability a ni. Customer pakhat chu a hnuai lam-shelf product en turin a bawkkhup a, cm 20–40 vel a hlaah label a hmu a. Label lian tak, promotional text nena dense chu chutiang hla takah chuan parse a harsa zawk a, compact label, thianghlim, high-contrast price display nei aiin. A hnuai lama label te zawk, mit level-a lian zawk hi layout principle a ni a, eng technology pawh hmang ila, hman theih a ni.
Endcaps leh promotional fixture neih dan tur ruahmanna a awm lo
Gondola run straight hi a straightforward a ni. Endcaps, curved end fixtures, leh freestanding promotional bays te hian angled bracket an mamawh fo thinemaw, standard gondola order-a tel lo custom mounting solution emaw pawh a ni thei. Floor plan atanga ruahmanna siam hunah hengte hi ngaihthah a awlsam hle. Pre-pilot site survey neih chhunga anmahni hriatchhuah hian ruahmanna siamnaah hun a belhchhah lo tluk a ni a, mid-deployment improvisation buaithlak tak a veng bawk. Hriatthiam i duh chuan
ESL system hnathawh dan end-to{1}}endhardware atanga software thlengin, chu guide chuan a thlalak kimchang chu a huam vek a ni.Quick Reference: Shelf Type hrang hranga ESL Size rawt
| Shelf / Product chi hrang hrang | Size atana rawtna siam | Taksa Thuk zawng | Ngaihtuah Tur pawimawh tak |
|---|---|---|---|
| Grocery tenau (jar, sachet, spice) te pawh a awm bawk. | 1.53"–2.13" | 8–10 mm a ni | Label body zau zawng chu product slot chhungah a awm reng tur a ni |
| Standard grocery (packaged bungrua, in tur) 1.1. | 2.66"–4.2" | 9–12 mm a ni | 4.2" hian gondola rail nena inmilna zau ber a nei |
| Damdawi dawr / OTC (blister pack, tube) te a awm a. | 1.53"–2.13" | 8–10 mm a ni | Width hi critical variable a ni a, depth a ni lo |
| Convenience store (thil chi hrang hrang) . | 2.13"–2.66" | 9–11 mm a ni | Rail nena inmil leh awm loh enfiah; AP pakhat hian full floor a khuh tlangpui |
| Specialty / electronics / in lama hman tur thil chi hrang hrang | 5.8"–9.7" | 11–16 mm a ni | Specs leh QR code atan screen area extra hmang rawh |
| Refrigerated / frozen-a dah a ni | 2.66"–4.2" (a hniam-temp model) a ni. | 9–12 mm a ni | Confirm min. order hmain operating temp spec a awm |
Order I Hmain: Point nga-Point Sizing Checklist
- I product narrow ber facing chu teh rawh.I label body width chu chu slot chhungah chuan overlap awm lovin a fit tur a ni.
- Rail nena inmil leh awm loh test rawh.Bulk order i siam hmain physical sample dil la, i specific shelf rail-ah clip rawh.
- Eng shelf san zawng nge a inrawlh tih hre reng ang che.Bottom-shelf position-te chuan label te zawk, thianghlim zawk an duh zawk; eye-level shelf-ah hian thu belhchian dawl zawk a awm thei.
- Refrigerated emaw frozen emaw section eng pawh flag rawh.Hengte hian dedicated low-temperature model - order hmain temperature specification confirm a ngai a ni.
- Endcaps leh non{0}}standard fixtures te hriatchhuah.Chungte chuan custom bracket an mamawh mai thei; chu scope chu i pilot plan-ah factor rawh.
FAQ
Q: Electronic shelf label hian ka thil siamte barcode hi a block dawn em ni?
A: Ni lo, ESL te hi shelf edge - hmalam rail strip - ah an mount a, product ngeiah an mount lo. Product packaging-a barcode chu label chung leh hnung lamah a thu a, a lang kim vek. Label san zawng chu buaina a nih theihna tur scenario awmchhun chu product tawi takah hian format lian tak-format label install a nih chuan a ni a, hei vang hian label san zawng leh product size inmil hi a pawimawh - a, engvangin nge label tenau zawkte hian compact item, sachet emaw blister pack ang chi te tan a thawk tha zawk a ni.
Q: ESLs install tur hian ka paper label strip awmsa te hi ka paih chhuah a ngai em?
A: A tlangpuiin a ni lo. Legoyo-a clip-in leh magnetic mount design te hian hmanrua emaw structural modification emaw hmang lovin label rail system awm tawhah emaw, a bulah emaw hna a thawk a ni. Refrigerated cabinet emaw pre-2010 gondola fixture-a hman thin rail profile hlui zawk emaw -standard lo - tan chuan - adapter clip hian a tam zawkah chuan inmilna a chinfel sak thin. A kalphung kimchang chu Legoyo-a ESL installation guide-ah hian en rawh.
Q: Electronic shelf label te hi shelf kil atang hian eng chen nge an rawn chhuah?
A: Legoyo-a e-ink ESL te hi a lian leh te a zirin 8–16 mm thuk takin an thu a. 2.66" leh 4.2" model - deploy tam ber - te hi 9–12 mm a inzar pharh a ni. Paper insert nei standard plastic label channel chu a tlangpuiin 10–14 mm a ni a, chuvangin ESL te hi tehkhin theih a ni a, paper channel chu vawi khat lakchhuah a nih chuan a thuk zawk fo thin.
Q: Wireless access point hian shelf-ah hmun a luah em?
A: Ni lo, access point hi ceiling-ah emaw, wall-ah emaw sang takah dah a ni a, merchandise shelf-ah a innghat lo. Store tenau leh mid-size tam zawk tan chuan access point pakhat emaw pahnih emaw chuan sales floor pumpui a khuh vek a ni. Wireless standard i thlan hian coverage range leh battery performance a nghawng - Bluetooth vs. Wi-Fi vs. Sub{8}}GHz ESL systems chungchanga kan guide hian trade-offs a sawifiah a ni.
Q: Refrigerated shelf atana siam ESL a awm em?
A: Ni e. Purpose-built low-temperature e-ink ESLs hi standard size range tam zawkah a awm a, −20℃emaw a aia hniam emawa rate a ni. Mounting-ah hian ambient-temperature model ang chiah clip- an hmang a, chuvangin shelf modification a ngai lo. Cold-chain sections order hunah minimum operating temperature specification confirm rawh - model hrang hrangah a danglam thin.
Q: Sample atan eng size nge ka dil tur?
A: 4.2" - atanga tan la, khawvel pumah size deployed ber a ni a, standard gondola rail system tam zawk nen pawh a inmil hle. I dawr hian narrow-product shelving (pharmacy, cosmetics, spice aisle) section pawimawh tak tak a neih chuan 2.13" emaw 2.66" sample pawh dil rawh. A side-by-side comparison on your actual shelf hian minute nga a la a, spec sheet-in a chhan theih loh zawhna zawng zawng a chhang ang.
